Principal Component Analysis (PCA)

Exploratory Data Analysis & Unsupervised Learning



Lecturer: HAS Sothea, PhD

🗺️ Content

• Motivation

• Principal Directions & Components

• Dimensional Reduction & Reconstruction

• Correlation Circles

• Contribution Scores

Motivation

Motivation

California Housing Prices dataset

• The data contains information from the 1990 California census.
• Dimension: (20640, 10). It describes blocks across California.

	longitude	latitude	housing_median_age	total_rooms	total_bedrooms	population	households	median_income	median_house_value	ocean_proximity
0	-122.23	37.88	41.0	880.0	129.0	322.0	126.0	8.3252	452600.0	NEAR BAY
1	-122.22	37.86	21.0	7099.0	1106.0	2401.0	1138.0	8.3014	358500.0	NEAR BAY
2	-122.24	37.85	52.0	1467.0	190.0	496.0	177.0	7.2574	352100.0	NEAR BAY
3	-122.25	37.85	52.0	1274.0	235.0	558.0	219.0	5.6431	341300.0	NEAR BAY
4	-122.25	37.85	52.0	1627.0	280.0	565.0	259.0	3.8462	342200.0	NEAR BAY

• How can we summarize and visualize individual-column relationship of the data?

Motivation

California Housing Prices dataset

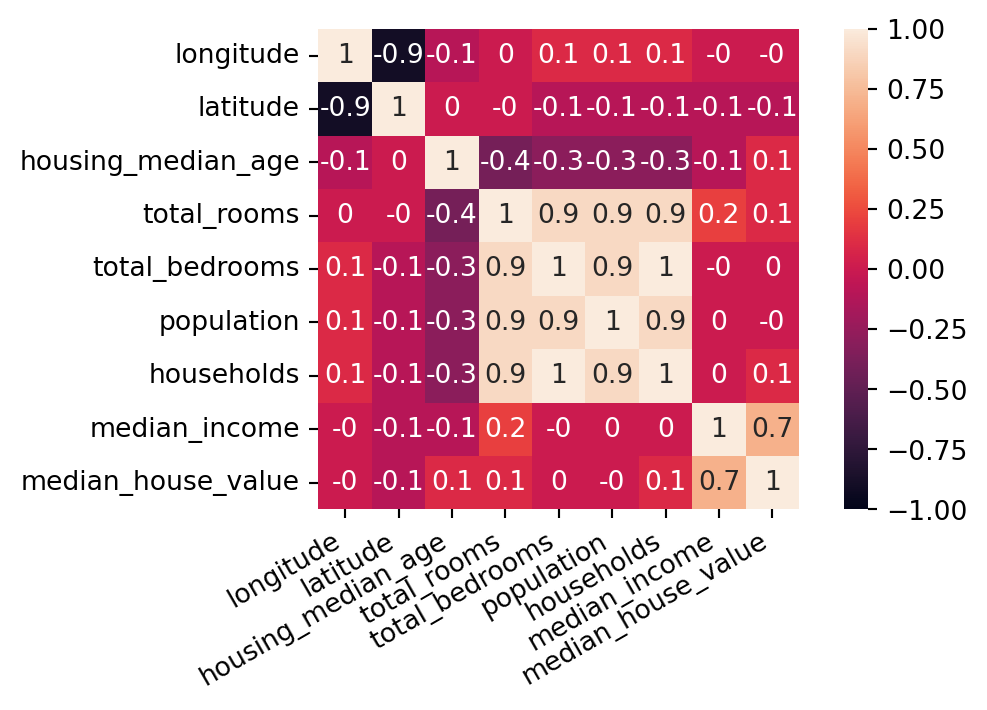

• Correlation matrix

import matplotlib.pyplot as plt
import seaborn as sns
f, ax = plt.subplots(figsize=(6, 3.25))
corr = data.select_dtypes(include="number").corr().round(1)
sns.heatmap(corr, annot=True,
    vmin=-1.0, vmax=1.0,
    square=True, ax=ax)
ax.set_yticklabels(ax.get_yticklabels(), ha='right')
ax.set_xticklabels(ax.get_xticklabels(), rotation=30, ha='right')
plt.show()

• Recall: correlation matrix can
  • Summarize linear relation between columns.
  • Absolute values \(\approx 1\) indicate strong linear relation.
  • Weak values \(\approx 0\) suggest non-linear relation, BUT it may be affected by
    • Outliers (see TP2 Solution),
    • Lacks of data points,
    • Confounding variables…

Motivation

California Housing Prices dataset

• Correlation matrix

import matplotlib.pyplot as plt
import seaborn as sns
f, ax = plt.subplots(figsize=(6, 3.25))
corr = data.select_dtypes(include="number").corr().round(1)
sns.heatmap(corr, annot=True,
    vmin=-1.0, vmax=1.0,
    square=True, ax=ax)
ax.set_yticklabels(ax.get_yticklabels(), ha='right')
ax.set_xticklabels(ax.get_xticklabels(), rotation=30, ha='right')
plt.show()

• High correlations among columns suggest that information can be compressed/reduced.
• Geometrically, the pattern of data can be represented in simpler/smaller dimension.
• PCA can detect important directions of data and reduce dimension of the data.
• The important directions may carry meaningful interpretation for summaring the data.
• Let’s explore this…

Principal directions & components

Principal directions & components

Principal directions (PDs) & Components (PCs)

• Given data matrix: \(X\in\mathbb{R}^{n\times d}\),

	X	Y	Z
0	-0.959	-0.808	-1.409
1	-2.439	0.870	-1.008
2	0.661	0.043	1.787
3	-3.891	-1.206	-4.043
4	0.618	1.229	0.470
5	1.310	0.082	0.454
6	0.822	-2.479	-1.142
7	4.057	1.629	6.200
8	1.932	1.685	4.132

Principal directions & components

Principal directions (PDs) & Components (PCs)

Principal directions \(\vec{u}_k\)

• First principal direction \(\color{red}{\vec{u}_1}\in\mathbb{R}^d\) is the direction that the data spreads or varies the most.
• Second principal direction \(\color{green}{\vec{u}_2}\in\mathbb{R}^d\) is the direction that perpendicular to \(\color{red}{\vec{u}_1}\) and captures second largest variation of the data.
• For \(3\leq k\leq d\), the \(k\)-th principal direction \(\color{blue}{\vec{u}_k}\in\mathbb{R}^d\) is the direction that perpendicular to \(\{\color{red}{\vec{u}_1},\color{green}{\vec{u}_2},\dots,\color{purple}{\vec{u}_{k-1}}\}\) and captures the \(k\)-th largest variation of the data.
• Let \(U\) be a \(d\times d\) matrix with all PD columns, i.e., \[U=[\color{red}{\vec{u}_1}|\color{green}{\vec{u}_2}|\dots |\color{blue}{\vec{u}_d}],\] then \(\tilde{X}=XU\) is the rotated data with independent columns, and the 1st, 2nd, 3rd… columns has the largest, 2nd largest, 3rd largest… variance, respectively. They’re called Principal Components (PCs).

Principal directions & components

How to find PDs & PCs

Solution to Principal Directions \(\vec{u}_k\)

• Let \(X\in\mathbb{R}^{n\times d}\) the data matrix.
• PDs \(\color{red}{\vec{u}_1},\dots,\color{blue}{\vec{u}_d}\) are the 1st, …, \(d\)-th eigenvectors of matrix \(A=X^TX\) with eigenvalues \(\color{red}{\lambda_1}>\dots>\color{blue}{\lambda_d}\geq 0\) respectively.
• Principal components are the columns of

\[\begin{align*} \underbrace{\tilde{X}}_{n\times d}&=\underbrace{X}_{n\times d}\underbrace{\color{blue}{U}}_{n\times d}\\ &=\begin{bmatrix} \text{x}_{11} & \dots & \text{x}_{1d}\\ \text{x}_{21} & \dots & \text{x}_{2d}\\ \text{x}_{31} & \dots & \text{x}_{3d}\\ \vdots & \ddots & \vdots\\ \text{x}_{n1} & \dots & \text{x}_{nd}\end{bmatrix} \begin{bmatrix} \text{u}_{11} & \dots & \text{u}_{1d}\\ \text{u}_{21} & \dots & \text{u}_{2d}\\ \vdots & \ddots & \vdots\\ \text{u}_{d1} & \dots & \text{u}_{dd}\end{bmatrix} \end{align*}\]

• The \(j\)-th PC is the combination of original columns of \(X_i\), i.e., \(\text{PC}_j=\sum_{i=1}^du_{ij}X_i.\)

Principal directions & components

Implementation of PCA

Unnormalized PCA

• Given data: \(X\in\mathbb{R}^{n\times d}\)
• Centering \(X_c=\underbrace{X}_{n\times d} -\underbrace{\mathbb{1}_n}_{n\times n}\underbrace{X}_{n\times d}/n.\)
• Perform Eigenvalue Decomposition on covariance matrix \(V=X_c^TX_c/(n-1)\): \[V=\color{blue}{U}\Sigma \color{blue}{U}^T,\]
  • \(\color{blue}{U}\): matrix of eigenvectors
  • \(\Sigma=\text{diag}(\lambda_1,\dots,\lambda_d)\): diagonal matrix of eigenvalues \(\lambda_1\geq \dots\geq \lambda_d\geq 0\).

Normalized PCA

• Given data: \(X\in\mathbb{R}^{n\times d}\)
• Standardizing: compute std matrix \(D=\text{diag}(\widehat{\sigma}_1,\dots,\widehat{\sigma}_d)\) and standardized data \(Z=(\underbrace{X}_{n\times d} -\underbrace{\mathbb{1}_n}_{n\times n}\underbrace{X}_{n\times d}/n)D^{-1}.\)
• Perform Eigenvalue Decomposition on correlation matrix \(C=Z^TZ/(n-1)\): \[C=\color{blue}{U}\Sigma \color{blue}{U}^T.\]
• Rotated data: \(\color{blue}{\tilde{X}}=X\color{blue}{U}.\) [👉 Demo]

Dimensional Reduction/Reconstruction

Reduction/Reconstruction

Dimensional Reduction

• Reduction to \(k\) dimensions (\(k<d\)) is done by \(\color{blue}{\tilde{X}_k=\tilde{X}[:,:k]}.\)
• Quality of representation on each direction: \(\left[\frac{\lambda_1}{\sum_{j=1}^d\lambda_j},\dots,\frac{\lambda_k}{\sum_{j=1}^d\lambda_j}\right].\)
• Variation explained by \(k\) dimensions: \(\frac{\sum_{j=1}^k\lambda_j}{\sum_{j=1}^d\lambda_j}\times 100.\)
• For visualization, one can choose \(k=2\) or \(3\). [👉 Demo]

* Total variation of X: 15.25

	X	Y	Z
0	-0.959	-0.808	-1.409
1	-2.439	0.870	-1.008
2	0.661	0.043	1.787
3	-3.891	-1.206	-4.043
4	0.618	1.229	0.470

* Total variation of projection: 15.2

	PC1	PC2	PC3
0	-2.424	-0.173	-0.197
1	-2.287	2.086	-0.406
2	1.239	-0.292	-0.558
3	-6.119	1.163	-0.709
4	0.509	0.555	0.818

Reduction/Reconstruction

Dimensional Reduction

• Reduction to \(k\) dimensions (\(k<d\)) is done by \(\color{blue}{\tilde{X}_k=\tilde{X}[:,:k]}.\)
• Quality of representation on each direction: \(\left[\frac{\lambda_1}{\sum_{j=1}^d\lambda_j},\dots,\frac{\lambda_k}{\sum_{j=1}^d\lambda_j}\right].\)
• Variation explained by \(k\) dimensions: \(\frac{\sum_{j=1}^k\lambda_j}{\sum_{j=1}^d\lambda_j}\times 100.\)
• For visualization, one can choose \(k=2\) or \(3\). [👉 Demo]

• Application on California Housing Price dataset:

• Percentage of variance explained by two PCs: 79.86%.

Reduction/Reconstruction

Dimensional Reduction

• Reduction to \(k\) dimensions (\(k<d\)) is done by \(\tilde{X}_k=\tilde{X}[:,:k].\)
• Quality of representation on each direction: \(\left[\frac{\lambda_1}{\sum_{j=1}^d\lambda_j},\dots,\frac{\lambda_k}{\sum_{j=1}^d\lambda_j}\right].\)
• Variation explained by \(k\) dimensions: \(\frac{\sum_{j=1}^k\lambda_j}{\sum_{j=1}^d\lambda_j}\times 100.\)
• For visualization, one can choose \(k=2\) or \(3\). [👉 Demo]

Reconstruction

• The reconsution is defined by: \[\color{red}{X_k^{\text{rec}}}=\tilde{X}_k\color{blue}{U[:,:k]^T}.\]

• Best low-rank approximation shows that this reconstruction \(\color{red}{X_k^{\text{rec}}}\) is the best \(k\)-rank approximation of \(X\) with respect to Frobenius norm, i.e., \[\color{red}{X_k^{\text{rec}}}=\arg\min_{M_k:r(M_k)\leq k}\|X-M_k\|_F,\] where \(\|.\|_F\) is the Frobenius norm.

Reduction/Reconstruction

Summary

• PCA captures and arranges directions with largest, 2nd largest,… variation into the 1st, 2nd, … column using Spectral Theorem (Eigenvalue decomposition).
• These directions are contained in the eigenvector matrix of Covariance (unnormalized) or Correlation matrix (normalized) of the data.
• The variation along each direction is given by the corresponding eigenvalues: \(\lambda_1>\dots>\lambda_d\).
• Our goal is to explore dimensional reduction and reconstruction power of PCA, however, it can be used in Data Analysis, EDA, Data Summary…
• Remark: Many highly correlated columns indicates effective dimensional reduction (the first two PCs can capture significant variation).

Correlation Circle

Correlation Circles

• Besides dimensional reduction, PCA can be used to analyze the data.

• How would you explain this scatterplot?
• One should understand the connection between PCs and the original columns.
• This is done using Correlation Circle.

• One can compute correlations between original data with PCs:

d = len(quan_cols)
combined_data = pd.concat([pd.DataFrame(Z[:,:2], columns=['PC'+str(i+1) for i in range(2)]), pd.DataFrame(X[:,2:], columns = quan_cols[2:])], axis=1)
Corr_matrix = combined_data.corr()[['PC'+str(i+1) for i in range(2)]].iloc[2:,:]
Corr_matrix

	PC1	PC2
housing_median_age	-0.426668	0.048696
total_rooms	0.963481	0.087248
total_bedrooms	0.971857	-0.077096
population	0.930272	-0.113646
households	0.975068	-0.059403
median_income	0.107198	0.912892
median_house_value	0.084727	0.913812

fig_cir = go.Figure()
circle = go.Scatter(
    x=np.cos(np.linspace(0, 2 * np.pi, 100)),
    y=np.sin(np.linspace(0, 2 * np.pi, 100)),
    mode='lines',
    name='Unit Circle',
    line=dict(color='black', dash='dash')
)
fig_cir.add_trace(circle)
fig_cir.add_trace(go.Scatter(
    x=[-1,1],
    y = [0,0],
    mode="lines", line=dict(color='gray', dash='dash')
))
fig_cir.add_trace(go.Scatter(
    x=[0,0],
    y = [-1,1],
    mode="lines", line=dict(color='gray', dash='dash')
))

loc = ['top right', 'top left', 'bottom right', 'bottom left', 'top right', 'top left', 'bottom right']

# Add loading vectors
for i, feature in enumerate(quan_cols[2:]):
    fig_cir.add_trace(go.Scatter(
        x=[0, Corr_matrix.iloc[i, 0]],
        y=[0, Corr_matrix.iloc[i, 1]],
        mode='lines+text',
        text=[None, feature],
        textposition=[loc[i]],
        name=feature,
        showlegend=True
    ))

# Set the layout
fig_cir.update_layout(
    title='Correlation Circle',
    xaxis=dict(title='PC1 ('+str(np.round(pca.explained_variance_ratio_[0]*100,2)) + '%)', range=[-1.2, 1.2]),
    yaxis=dict(title='PC2 ('+str(np.round(pca.explained_variance_ratio_[1]*100,2)) + '%)', range=[-1.2, 1.2]),
    showlegend=False,
    width=470,
    height=470
)
fig_cir.show()

fig_cor = fig_bi_house
fig_cor.add_trace(go.Scatter(
    x=[-1,1],
    y = [0,0],
    mode="lines", line=dict(color='gray', dash='dash')
))
fig_cor.add_trace(go.Scatter(
    x=[0,0],
    y = [-1,1],
    mode="lines", line=dict(color='gray', dash='dash')
))
for i, var in enumerate(quan_cols[2:]):
    fig_cor.add_shape(
        type='line',
        x0=0, y0=0,
        x1=Corr_matrix.iloc[i, 0]*2, y1=Corr_matrix.iloc[i, 1]*2
    )
    fig_cor.add_annotation(
        x=Corr_matrix.iloc[i, 0]+np.random.normal(0,0.25), y=Corr_matrix.iloc[i, 1]+np.random.normal(0,0.25),
        ax=0, ay=0,
        xanchor="center",
        yanchor="bottom",
        text=var
    )
fig_cor.update_layout(width=470, height=470)
fig_cor.show()

Correlation Circles

Interpretation

• PC1 is strong related to total_rooms, households, population and housing_median_age.

• PC2 is strong reated to median_income and median_house_value.
• The length of each variable represents how well represented it is in the plane of PC1 and PC2 (1st factorial plane).
• Highly correlated original variables are mostly aligned.
• Those that are nearly perpendicular, tend to be decorrelated.
• For this example:
  • PC1 seems to represent size and condition of houses within each block.
  • PC2 seems to represent economic condition of houses within each neighborhood.
• This can be used to summarize the scatterplot of individuals.

Contribution Scores

Contribution Scores

Variable contributions/loadings

• We define the contribution of original variable \(j\) on PC \(k\) by \[\text{Loading}_j(\text{PC}_k)=\frac{[U\Sigma^{1/2}]_{jk}^2}{\sum_{p=1}^d[U\Sigma^{1/2}]_{jp}^2}=\frac{[U\Sigma^{1/2}]_{jk}^2}{\lambda_j}.\]

loadings = (pca.components_.T) ** 2 * pca.explained_variance_
contr = pd.DataFrame(loadings/pca.explained_variance_, index=quan_cols[2:], columns=[f'PC{i+1}' for i in range(pca.components_.shape[1])])
contr.iloc[:,:2].T.abs().round(4)*100

	housing_median_age	total_rooms	total_bedrooms	population	households	median_income	median_house_value
PC1	4.68	23.87	24.28	22.25	24.44	0.3	0.18
PC2	0.14	0.45	0.35	0.76	0.21	49.0	49.10

Contribution Scores

Individual contributions/\(\cos^2\)

• We define the contribution of each individual \(i\) on PC \(k\) by \[\text{Contr}_i(\text{PC}_k)=\cos^2(i,k)=\frac{[XU]_{ik}^2}{\sum_{\ell=1}^n[XU]_{\ell k}^2}=\frac{[XU]_{ik}^2}{(n-1)\lambda_k}\]

pc_score = pd.DataFrame(X[:,2:], columns=contr.columns)
scores = pc_score ** 2/((data.shape[0]-1) * pca.explained_variance_) * 100
df_contr = pd.DataFrame(
    {
        'Contribution on PC1': scores['PC1'],
        'Contribution on PC2': scores['PC2'],
        'Individual': pc_score.index
    }
)
fig_cont = px.scatter(df_contr, x='Contribution on PC1', y='Contribution on PC2', hover_name=pc_score.index, size=df_contr['Contribution on PC1']+df_contr['Contribution on PC2'])
fig_cont.update_layout(height=220, width=600, title="Contribution of individuals on PCs")
fig_cont.show()

🥳 Yeahhh! Party Time…. 🥂

Any questions?
