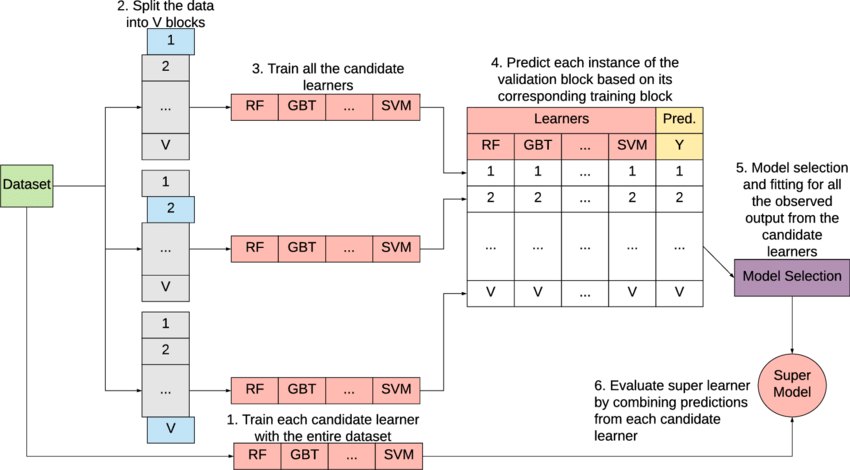

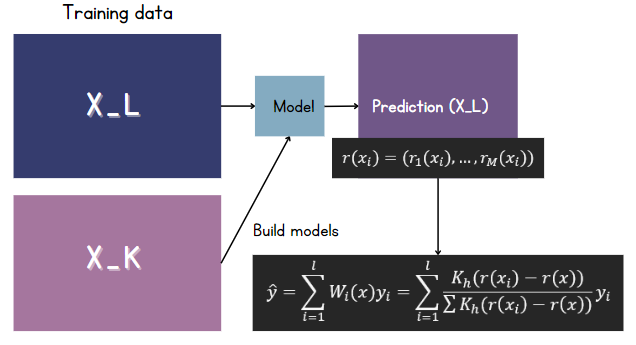

with, for example, \[K_h(x)=\exp(-\|x/h\|^2).\]
One needs to estimate the best smoothing parameter \(h\) for the aggregation.

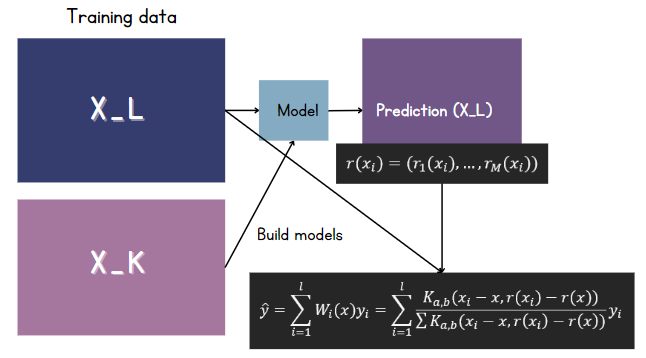

with, for example, \[K_{a,b}(x)=\exp(-\|(x/a,y/b)\|^2).\]
One needs to estimate \(a\) and \(b\).
The following result are:
def av_resolution(resulution, y):
a = len(y) // resulution
r = len(y) % a
if r < resulution/2:
group = np.concatenate((np.repeat(list(range(0,a)), resulution), np.repeat(a-1, r)))
else:
group = np.concatenate((np.repeat(list(range(0,a)), resulution), np.repeat(a, r)))
return y.groupby(by = group).mean()from plotly.subplots import make_subplots
import plotly.graph_objects as go
from sklearn.metrics import mean_squared_error
version = 4
typ = 'abs'
# ml_coef = {
# '1' : [0.56, 0.57, 0.58],
# '2' : [0.70, 0.67, 0.74],
# '3' : [0.45, 0.48, 0.49],
# '4' : [0.44, 0.43, 0.47],
# '5' : [0.51, 0.56, 0.55],
# '6' : [0.72, 0.74, 0.75],
# '7' : [0.51, 0.53, 0.48],
# '8' : [0.74, 0.76, 0.72]
# }
cols = {'y_test': 'black', 'Agg1' : '#4095C2', 'Agg2': '#558C5E', 'Agg3': '#D45A56'}
index_bal_day = [0, 107, 210, 311, 377, 457, 515, 598, 675]
path0 = "C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Use2021_predict2019/models/output_ml_param_both_v2/output/"
path = "C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Use2021_predict2019/models/output_ml_param/output/new_result_2024/result_param3/"
path1 = "C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Use2021_predict2019/models/output_ml_param/output/"
ml_pred = xr.open_dataset(path + f'pred_ml_2019_{typ}.nc')
rf_pred0 = av_resolution(8, pd.DataFrame(ml_pred['rf'].values)).values.reshape(-1)
extra_pred0 = av_resolution(8, pd.DataFrame(ml_pred['extra'].values)).values.reshape(-1)
boost_pred0 = av_resolution(8, pd.DataFrame(ml_pred['boost'].values)).values.reshape(-1)
# subfig_title = ["ML","ML + Parametrization","ML + LMDz", "Parametrization"]
subfig_title = ["ML","ML + 3 Params","3 Params", 'Agg_Param_All_No_OldCMAM']
fig = make_subplots(
rows=2, cols=2,
specs=[[{}, {}],[{}, {}]],
horizontal_spacing = 0.075,
vertical_spacing= 0.09,
subplot_titles=("Among MLs","MLs with 3 Params","Among the 3 Params", "Among all params except 'Old CMAM'"))
fig_scatter = make_subplots(
rows=2, cols=2,
specs=[[{}, {}],[{}, {}]],
horizontal_spacing = 0.075,
vertical_spacing= 0.09,
subplot_titles=("Among MLs","MLs with 3 Params","Among the 3 Params", "Among all params except 'Old CMAM'"))
sns.set()
first = True
rs = {1 : 1, 2: 1, 3: 2, 4: 2}
cs = {1 : 1, 2: 2, 3: 1, 4: 2}
all_correlation_coef = []
all_rmse = []
for i in range(8):
df_ml = xr.open_dataset(path + f'pred_bal{i+1}_u1h_{typ}_ML_v6.nc')
df_ml_param = xr.open_dataset(path + f'pred_bal{i+1}_u1h_{typ}_ML_Param_3M.nc')
df_param = xr.open_dataset(path + f'pred_bal{i+1}_u1h_{typ}_Param_No_OldCMAM_v6.nc')
df_ml_lmdz = xr.open_dataset(path + f'pred_bal{i+1}_u1h_{typ}_Param_3M.nc')
all_pred = {'ml' : df_ml, 'param' : df_param, 'ml_param' : df_ml_param, 'ml_lmdz' : df_ml_lmdz}
k = 1
show = True
fig.data = []
fig_scatter.data = []
f, axs = plt.subplots(nrows=2, ncols=2, figsize=(8, 6))
f.tight_layout(pad=2.0)
corr_agg = []
rmse_agg = []
corr_type = []
agg_type = []
jj = 1
nam = {'ml': 'Agg_ML', 'ml_param': 'ML_Param_3M', 'ml_lmdz': 'Param_3M', 'param': 'Agg_Param_All_No_OldCMAM'}
for j in ['ml', 'ml_param', 'ml_lmdz', 'param']:
pred1 = 1000*av_resolution(8, pd.DataFrame(all_pred[j].variables['agg1'][:].values)).values.reshape(-1)
pred2 = 1000*av_resolution(8, pd.DataFrame(all_pred[j].variables['agg2'][:].values)).values.reshape(-1)
pred3 = 1000*av_resolution(8, pd.DataFrame(all_pred[j].variables['agg3'][:].values)).values.reshape(-1)
# pred3 = av_resolution(8, pd.DataFrame(all_pred[j].variables['agg3'][:].values)).values.reshape(-1)
y_test1 = 1000*av_resolution(8, pd.DataFrame(all_pred[j].variables['y_test'][:].values)).values.reshape(-1)
rmse1 = np.round(np.sqrt(mean_squared_error(y_test1, pred1)), 5)
coef1 = np.round(np.corrcoef(y_test1, pred1)[0,1], 2)
rmse2 = np.round(np.sqrt(mean_squared_error(y_test1, pred2)), 5)
coef2 = np.round(np.corrcoef(y_test1, pred2)[0,1], 2)
rmse3 = np.round(np.sqrt(mean_squared_error(y_test1, pred3)), 5)
coef3 = np.round(np.corrcoef(y_test1, pred3)[0,1], 2)
corr_agg.extend([coef1, coef2, coef3])
rmse_agg.extend([rmse1, rmse2, rmse3])
# print(rmse_agg)
corr_type.extend([nam[j]+'1', nam[j]+'2', nam[j]+'3'])
agg_type.extend(['Agg1', 'Agg2', 'Agg3'])
if j == 'ml':
pred_rf = 1000*np.array(rf_pred0[index_bal_day[i]:index_bal_day[i+1]])
pred_ex = 1000*np.array(extra_pred0[index_bal_day[i]:index_bal_day[i+1]])
pred_boost = 1000*np.array(boost_pred0[index_bal_day[i]:index_bal_day[i+1]])
coef_rf = np.round(np.corrcoef(y_test1, pred_rf)[0,1], 2)
coef_ex = np.round(np.corrcoef(y_test1, pred_ex)[0,1], 2)
coef_boost = np.round(np.corrcoef(y_test1, pred_boost)[0,1], 2)
rmse_rf = np.round(np.sqrt(mean_squared_error(y_test1, pred_rf)),5)
rmse_ex = np.round(np.sqrt(mean_squared_error(y_test1, pred_ex)),5)
rmse_boost = np.round(np.sqrt(mean_squared_error(y_test1, pred_boost)), 5)
aggregations = pd.DataFrame(
{
'True GWMF' : y_test1,
'Agg 1 ({})'.format(coef1) : pred1,
'Agg 2 ({})'.format(coef2) : pred2,
'Agg 3 ({})'.format(coef3) : pred3
})
fig.add_trace(go.Scatter(
x=list(range(1, len(y_test1)+1)),
y=y_test1,
name = "True",
mode="lines",
showlegend=show,
line = dict(color = "#2474B4")),
row=rs[k], col=cs[k])
fig.add_trace(go.Scatter(
x=list(range(1, len(y_test1))),
y=pred1,
name = "Agg1",
mode="lines",
showlegend=show,
line = dict(color = "#E09C39")),
row=rs[k], col=cs[k])
fig.add_trace(go.Scatter(
x=list(range(1, len(y_test1)+1)),
y=pred2,
name = "Agg2",
mode="lines",
showlegend=show,
line = dict(color = "#52A23C")),
row=rs[k], col=cs[k])
fig.add_trace(go.Scatter(
x=list(range(1, len(y_test1)+1)),
y=pred3,
name = "Agg3",
mode="lines",
showlegend=show,
line = dict(color = "#B83813")),
row=rs[k], col=cs[k])
if k == 1:
xaxis = 'xaxis'
yaxis = 'yaxis'
else:
xaxis = 'xaxis' + str(k)
yaxis = 'yaxis' + str(k)
if k in [3,4]:
fig['layout'][xaxis]['title'] = "Flight duration (day)"
if k in [1,3]:
fig['layout'][yaxis]['title'] = "GWMF (mPa)"
# fig['layout'][yaxis].update(range=[0, np.max(np.max(pred1, pred2, pred3))])
# Scatterplot
fig_scatter.add_trace(go.Scatter(
x=y_test1,
y=y_test1,
name = "True",
mode="lines",
opacity=0.75,
showlegend=show,
line = dict(color = "#2474B4")),
row=rs[k], col=cs[k])
fig_scatter.add_trace(go.Scatter(
x=y_test1,
y=pred1,
name = "Agg1",
mode="markers",
opacity=0.75,
showlegend=show,
marker = dict(color = "#E09C39")),
row=rs[k], col=cs[k])
fig_scatter.add_trace(go.Scatter(
x=y_test1,
y=pred2,
name = "Agg2",
mode="markers",
opacity=0.75,
showlegend=show,
marker = dict(color = "#52A23C")),
row=rs[k], col=cs[k])
fig_scatter.add_trace(go.Scatter(
x=y_test1,
y=pred3,
name = "Agg3",
mode="markers",
opacity=0.75,
showlegend=show,
marker = dict(color = "#B83813")),
row=rs[k], col=cs[k])
if k in [3,4]:
fig_scatter['layout'][xaxis]['title'] = "Reference GWMF (mPa)"
if k in [1,3]:
fig_scatter['layout'][yaxis]['title'] = "Prediction (mPa)"
fig_scatter['layout'][yaxis]['range'] = [0, np.max([pred1, pred2, pred3])*1.1]

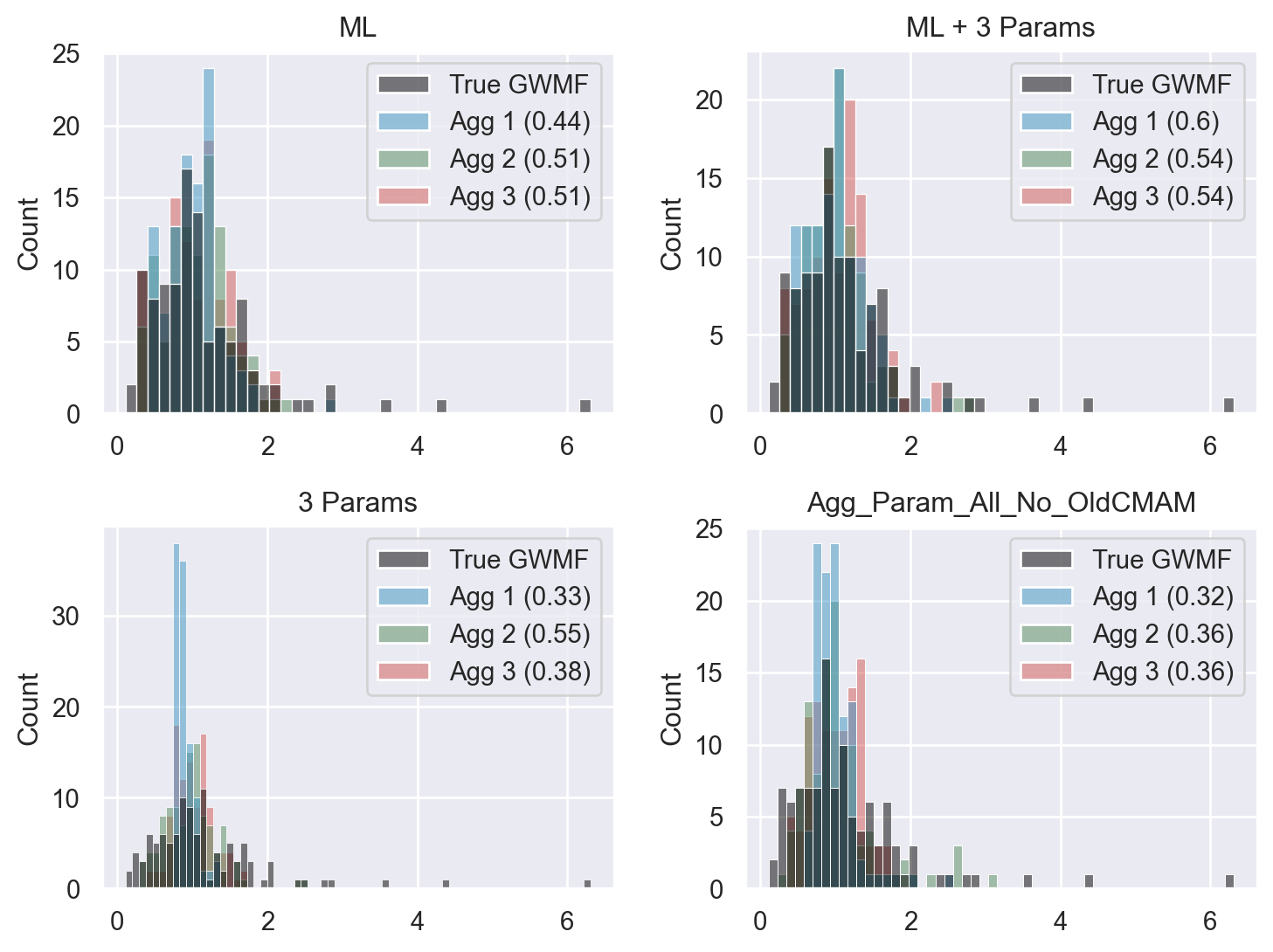

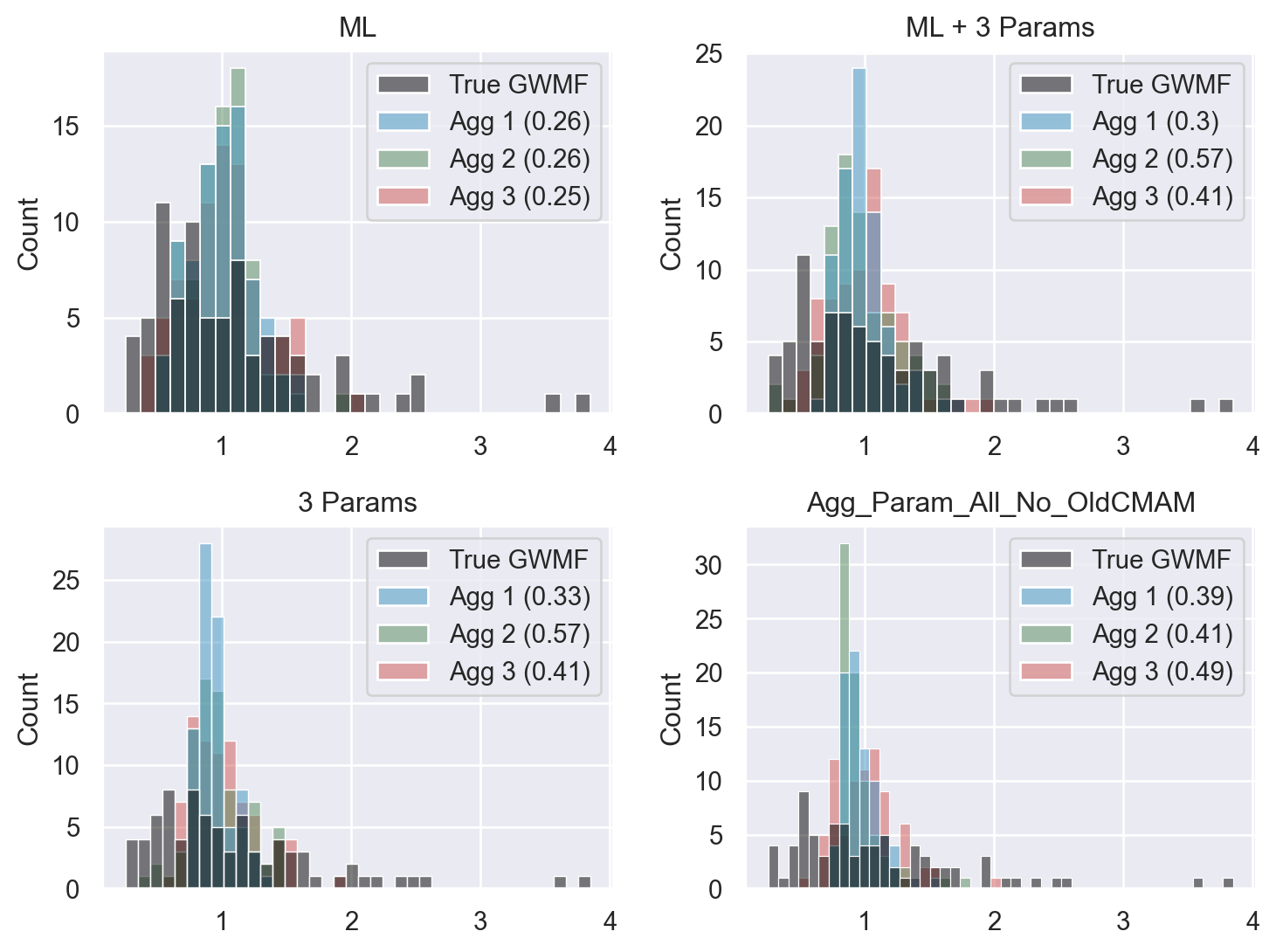

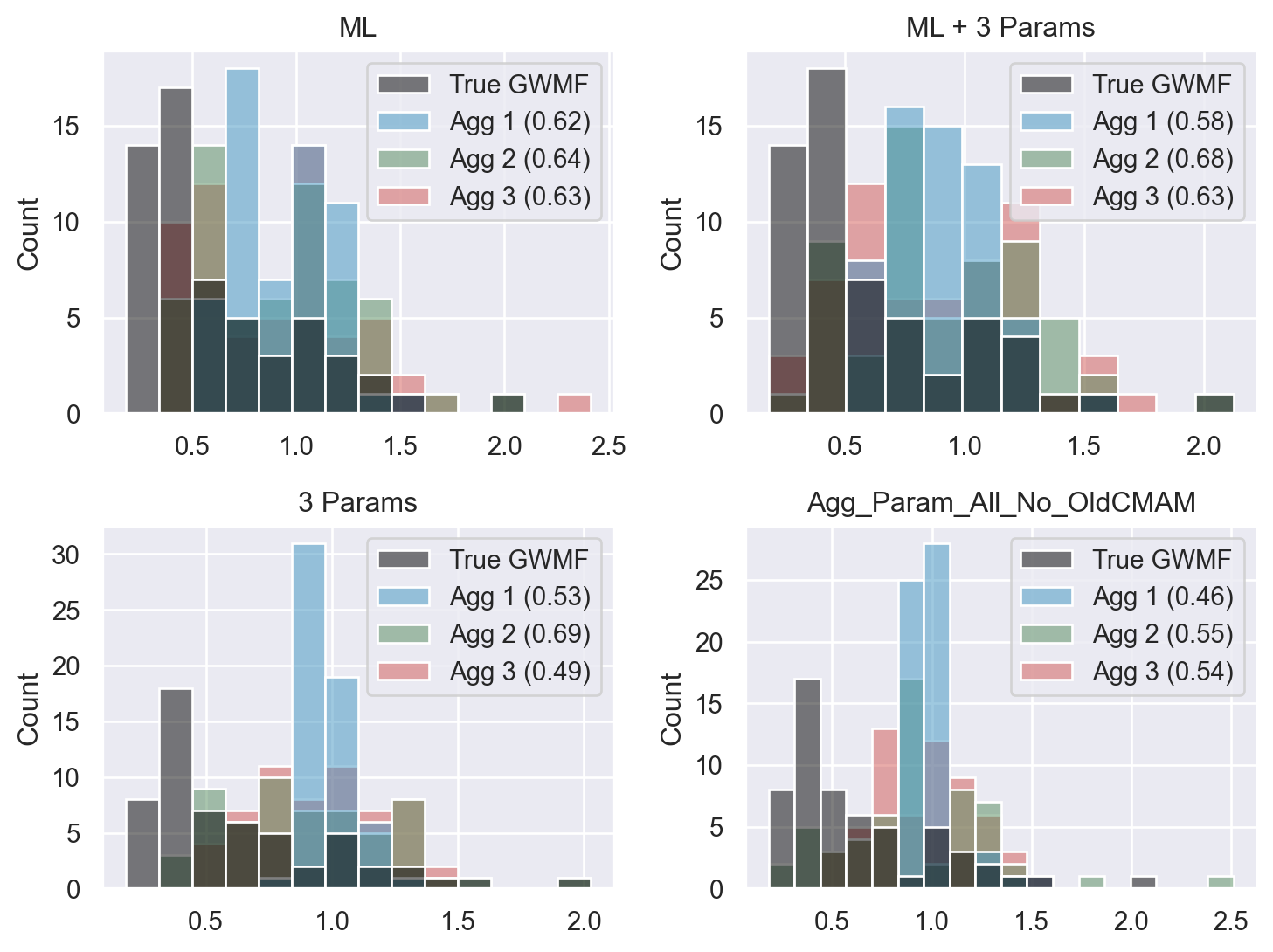

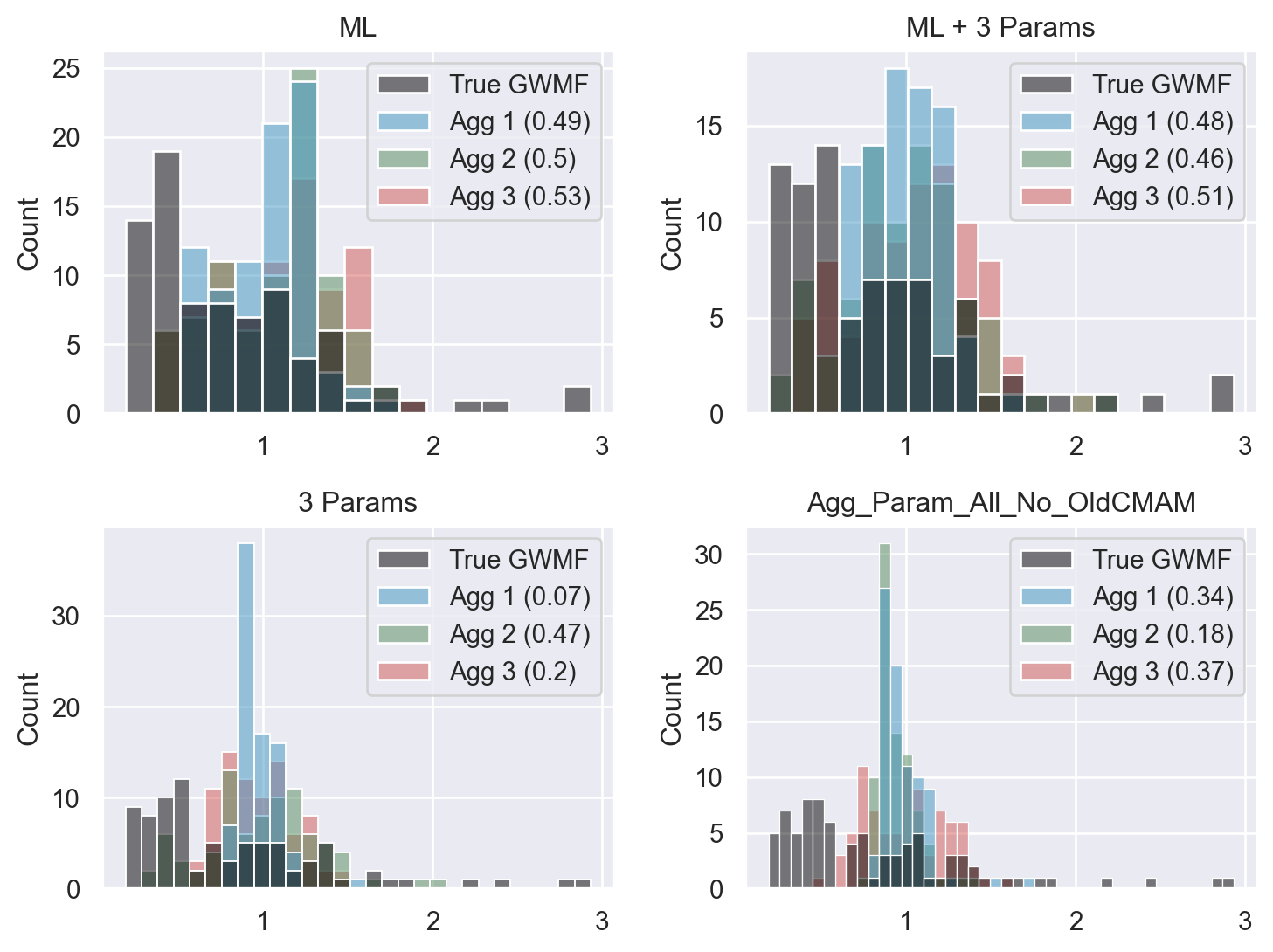

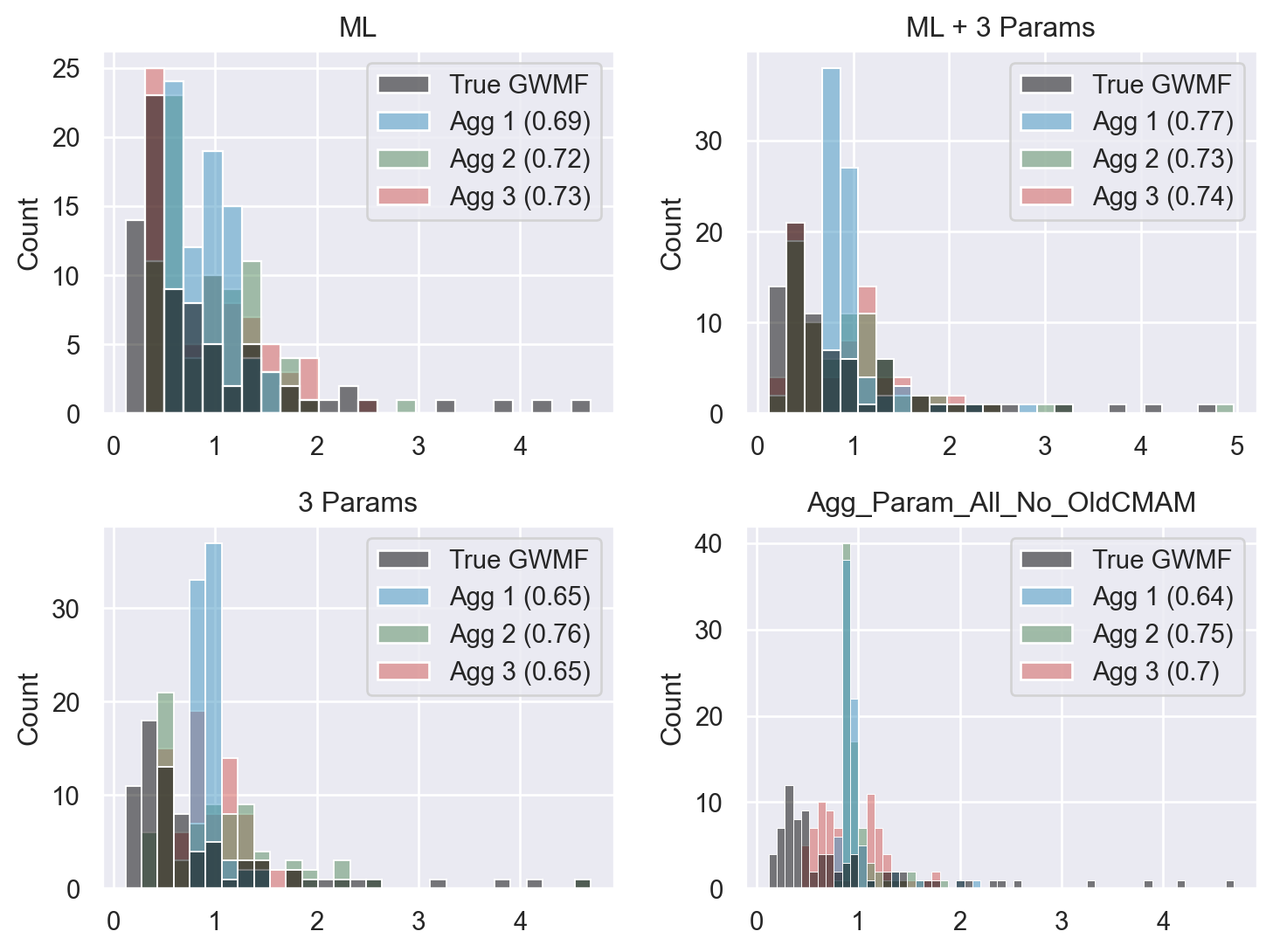

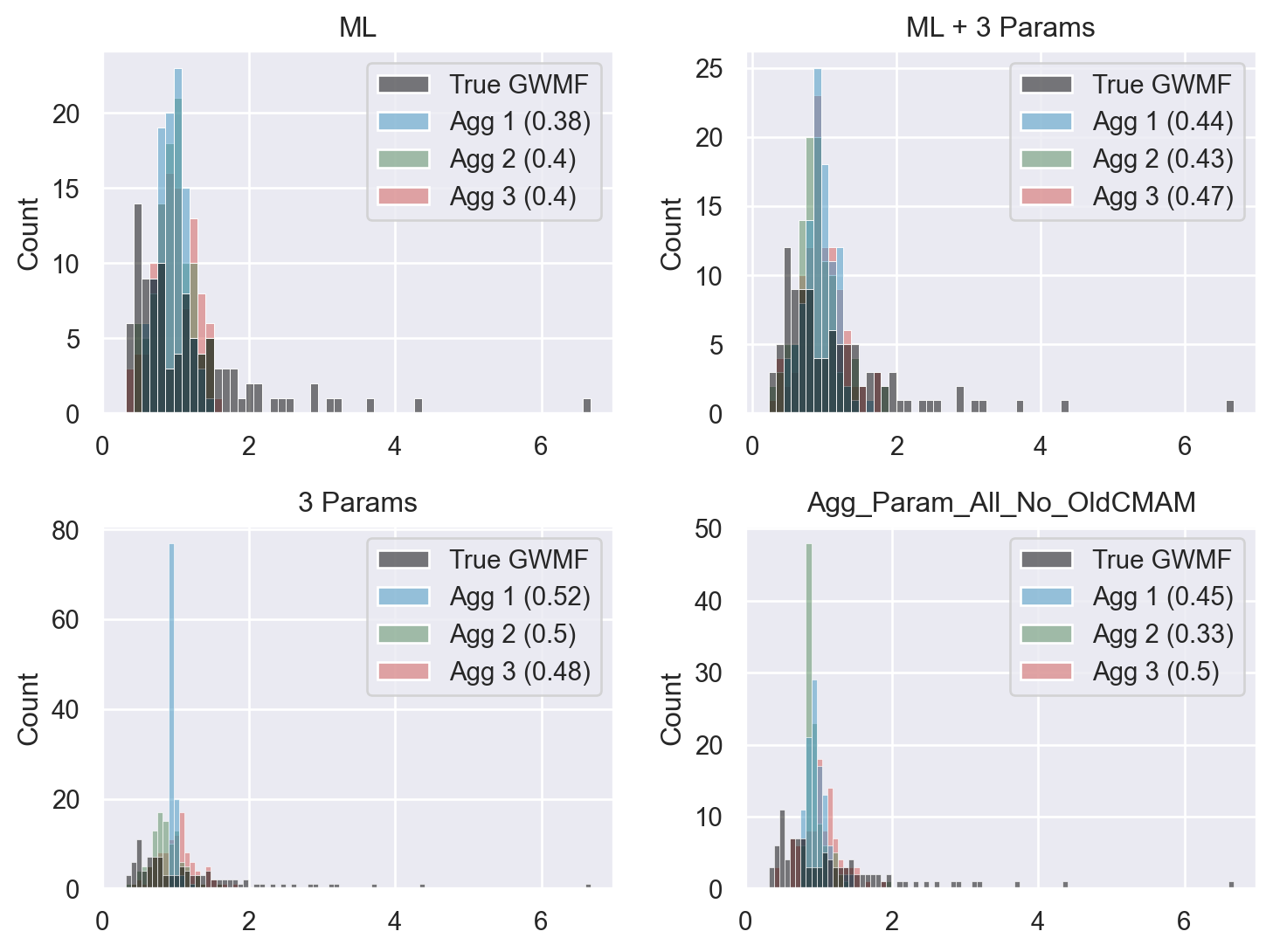

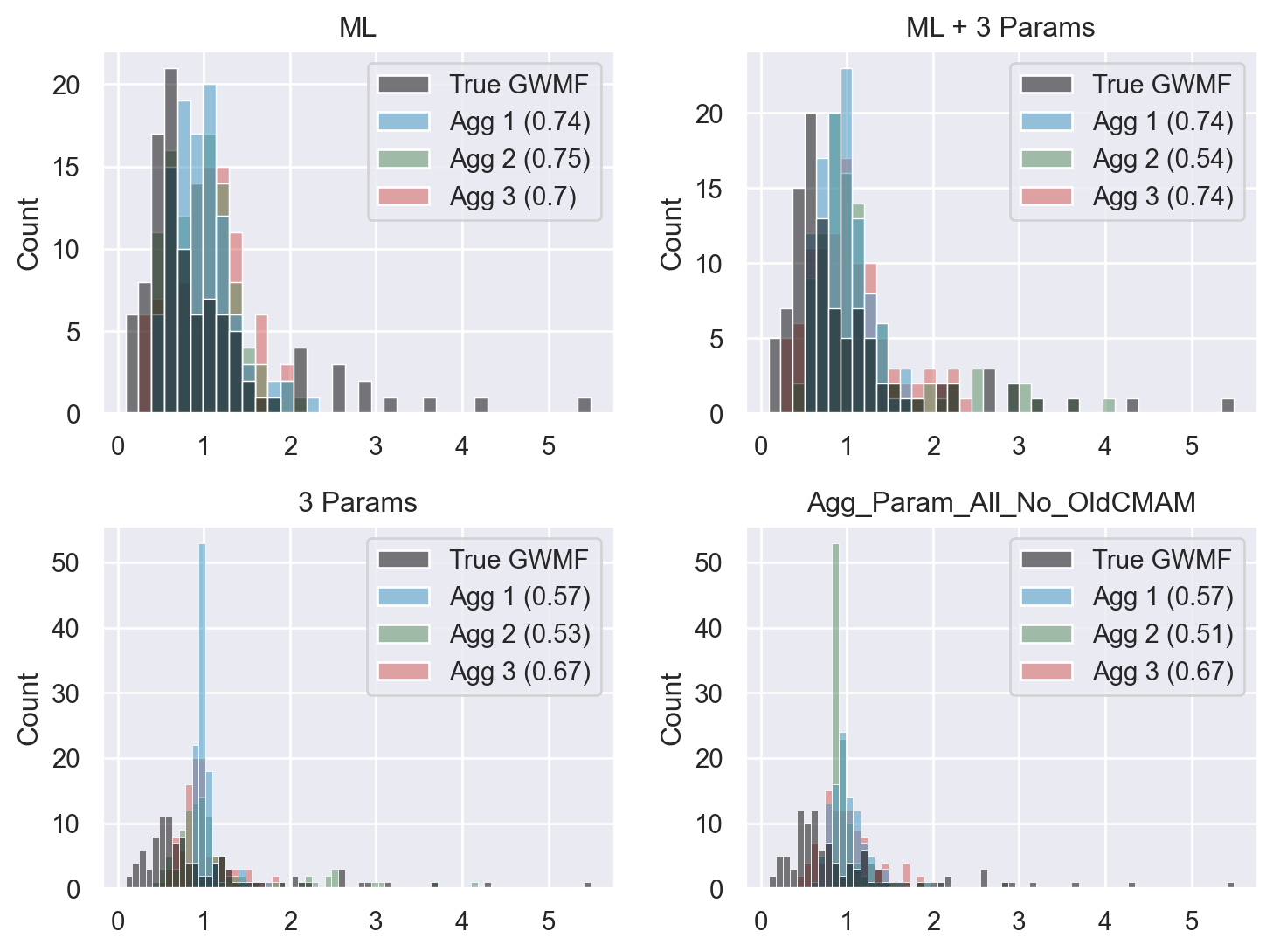

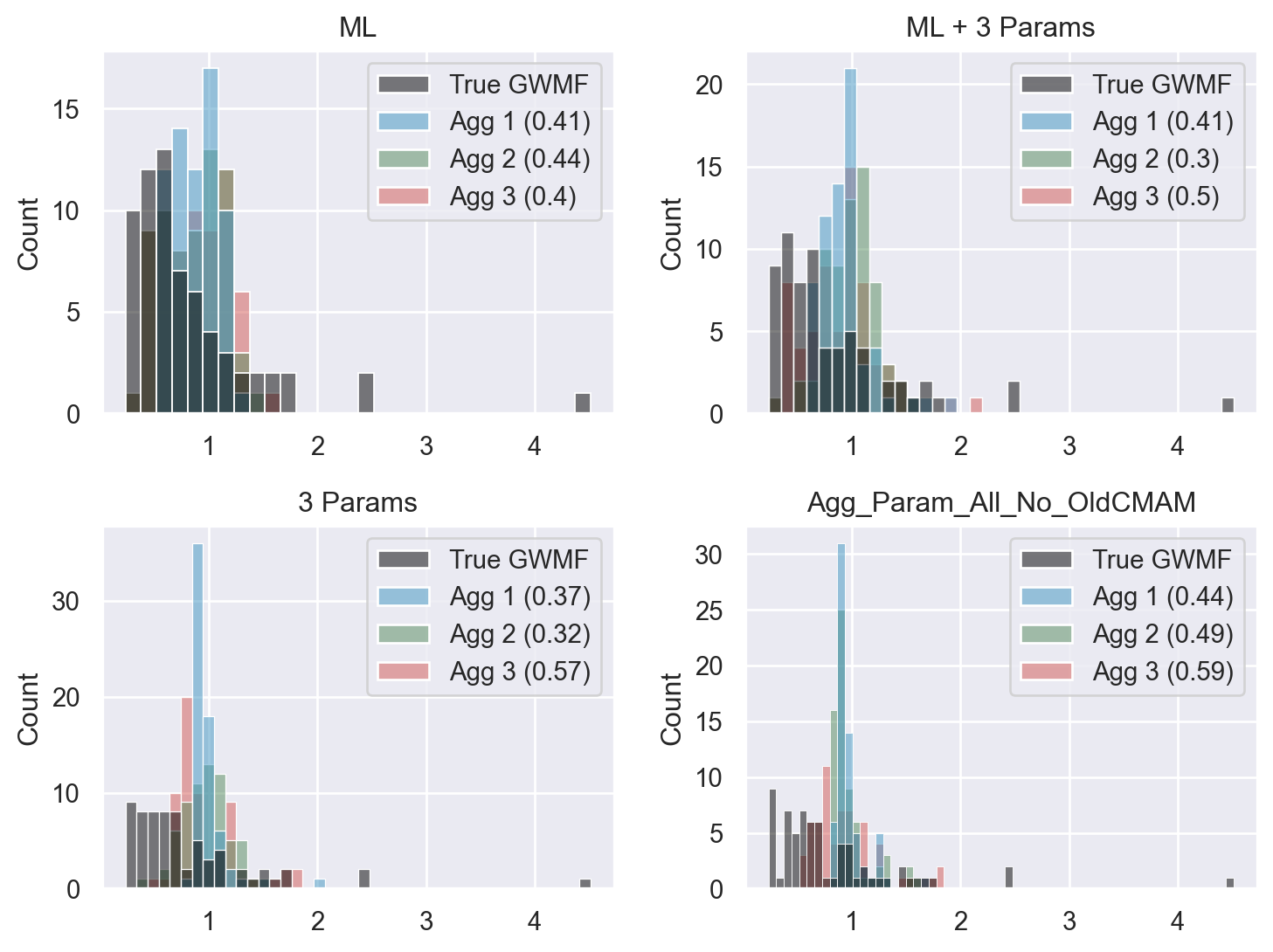

sns.histplot(data=aggregations, ax = axs[rs[k]-1, cs[k]-1], legend=True, palette = list(cols.values()))
# axs[rs[k]-1, cs[k]-1].set_yscale('log')
axs[rs[k]-1, cs[k]-1].set_title(subfig_title[k-1])
# axs[(k-1) // 2, (k-1) % 2].set_xticks(axs[(k-1) // 2, (k-1) % 2].get_xticks(), rotation = 30)
if k == 1:
show = False
k += 1
path1 = "C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Dataset/for_Sothea/phase1/"
param = pd.read_csv(path1 + f"Pred_Balloon_{i+1}_Amplitude_hourly.DAT")
param = param.drop(columns="old_CMAM")
cor_param = [np.round(np.corrcoef(av_resolution(24, param[param.columns[i]]).values.reshape(-1), y_test1), 2)[0,1] for i in range(param.shape[1])]
rmse_param = [np.round(np.sqrt(mean_squared_error(1000*av_resolution(24, param[param.columns[i]]).values.reshape(-1), y_test1)), 5) for i in range(param.shape[1])]
agg_methods_ = np.repeat(['Agg_ML', 'Agg_ML_3Param', 'Agg_3Param', 'Agg_all_Param'], 3)
bar_data = pd.DataFrame({
'Corr' : [coef_rf, coef_ex, coef_boost] + corr_agg + cor_param ,
'Method' : ['RF', 'Extra', 'Boost'] + corr_type + list(param.columns),
'Type' : ['ML', 'ML', 'ML'] + agg_type + list(np.repeat('Param', param.shape[1]))
})
all_correlation_coef.append([coef_rf, coef_ex, coef_boost] + corr_agg + cor_param)
fig.update_layout(title_text="Aggregations on balloon {}".format(i+1), width = 820, height = 600)
fig.show()
fig_scatter.update_layout(title_text="Scatterplots on {}".format(i+1), width = 820, height = 600)
fig_scatter.show()
plt.figure(figsize=(9,5))

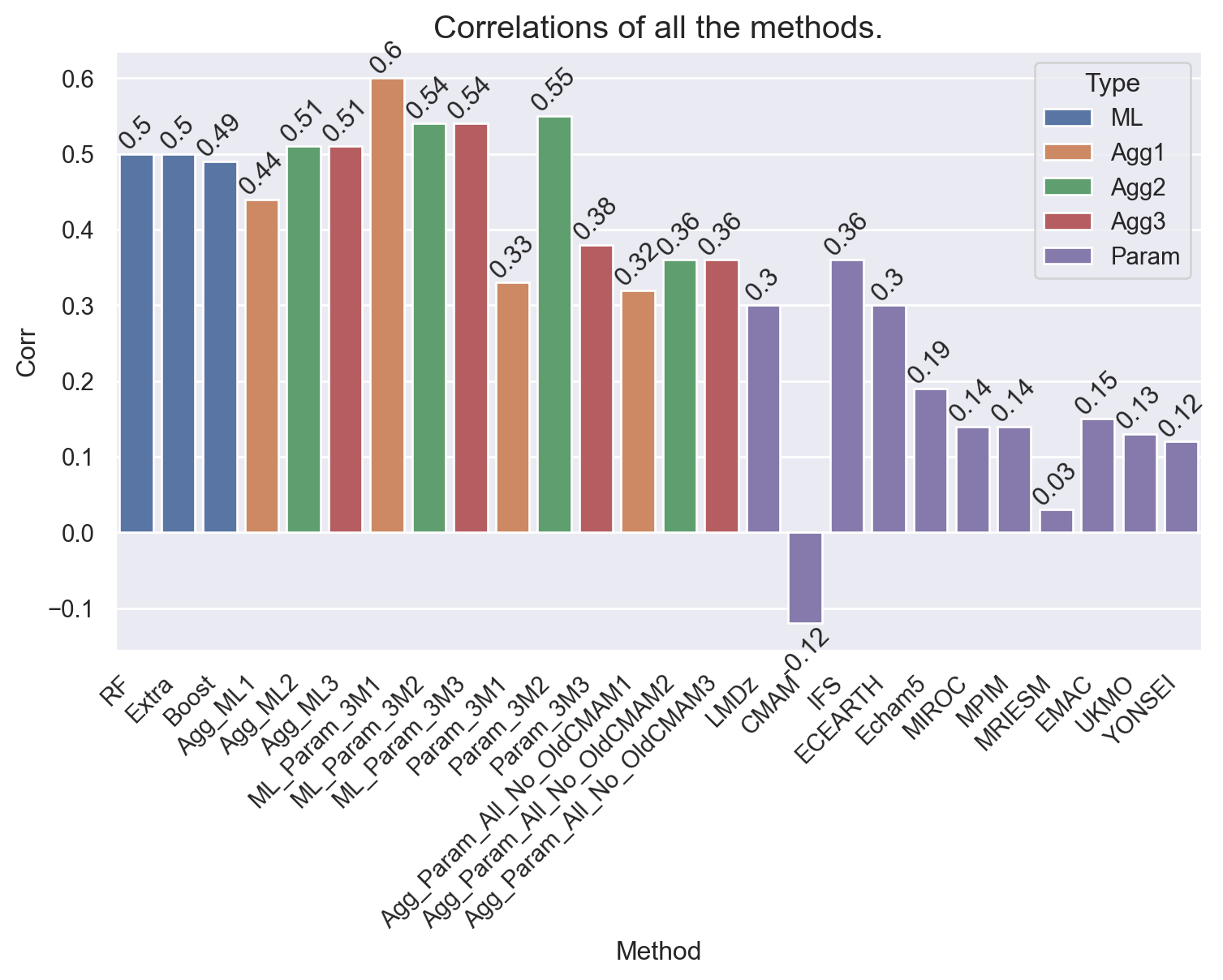

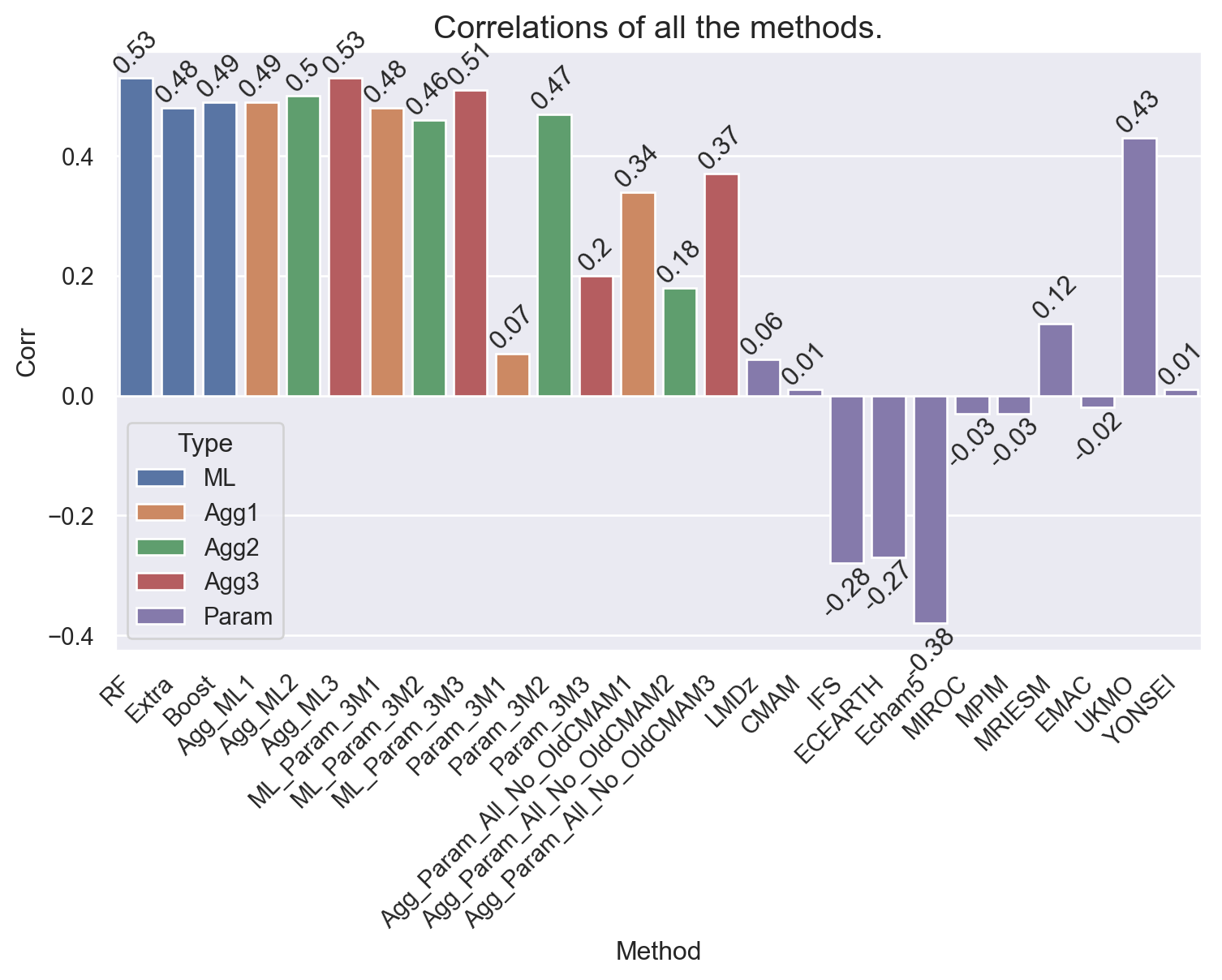

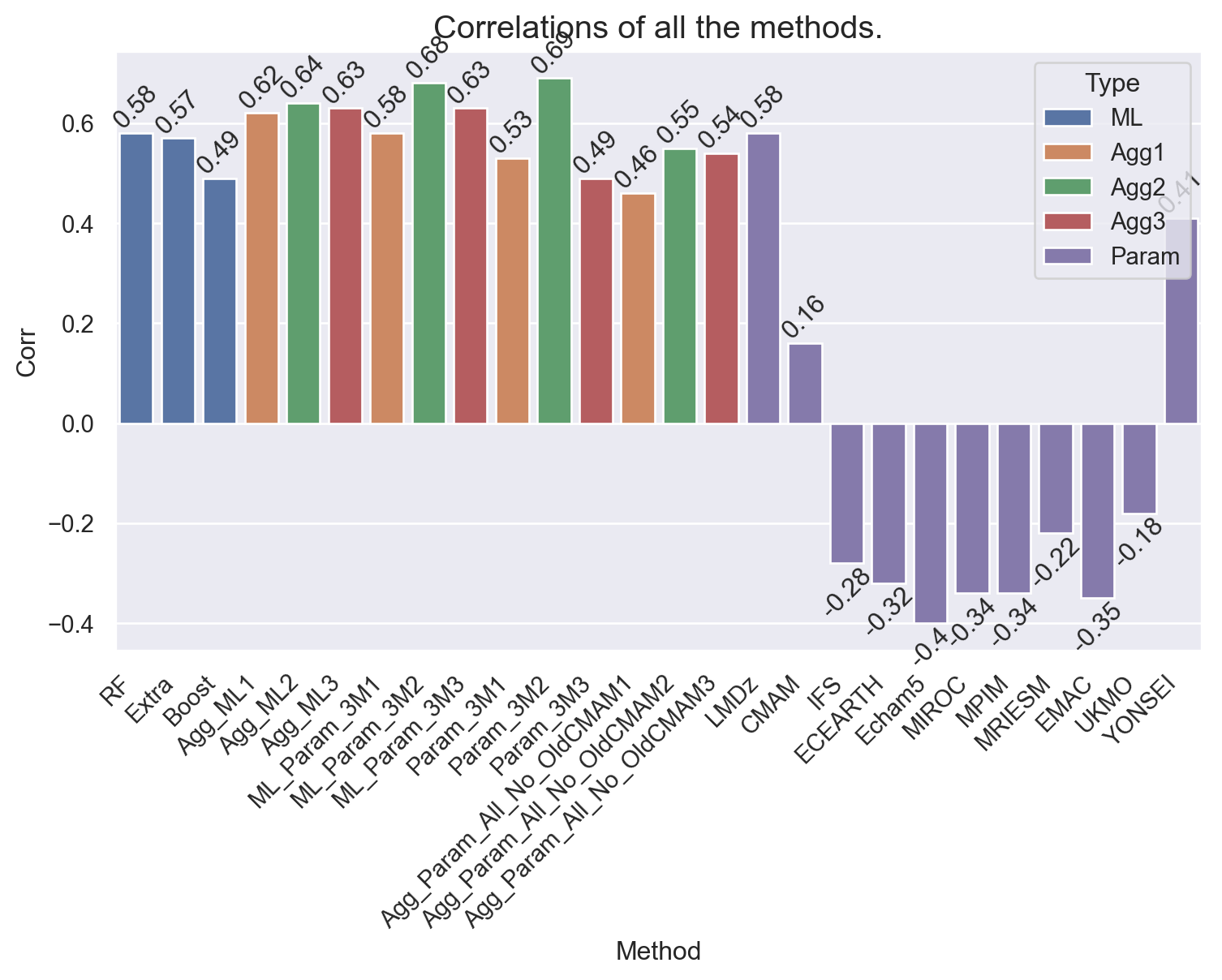

ax = sns.barplot(
bar_data,
x = "Method",
y = "Corr",
hue = 'Type'
)
ax.set_xticklabels(bar_data.Method, rotation=45, ha="right")
ax.bar_label(ax.containers[0], rotation = 45)
ax.bar_label(ax.containers[1], rotation = 45)
ax.bar_label(ax.containers[2], rotation = 45)
ax.bar_label(ax.containers[3], rotation = 45)
ax.bar_label(ax.containers[4], rotation = 45)

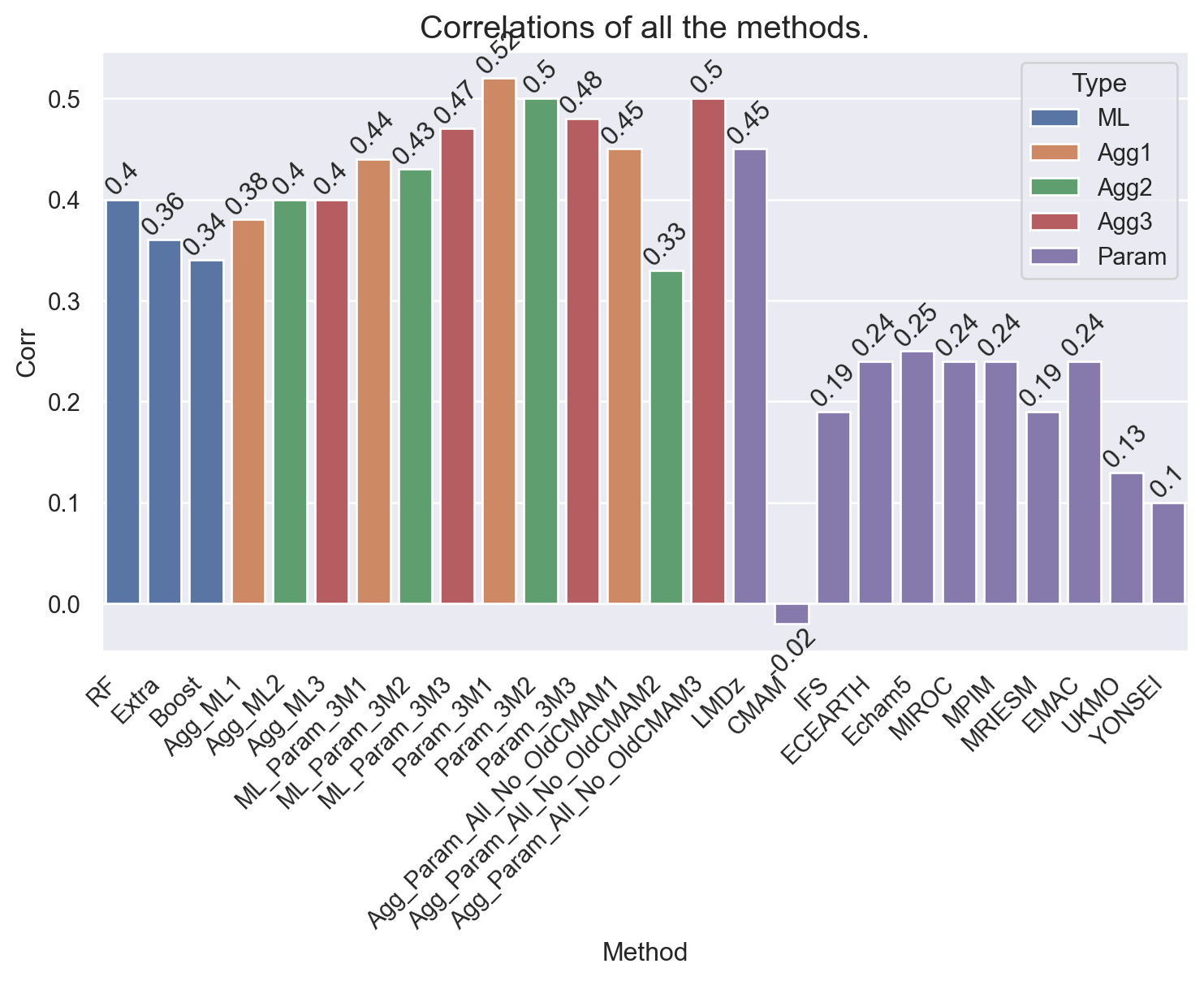

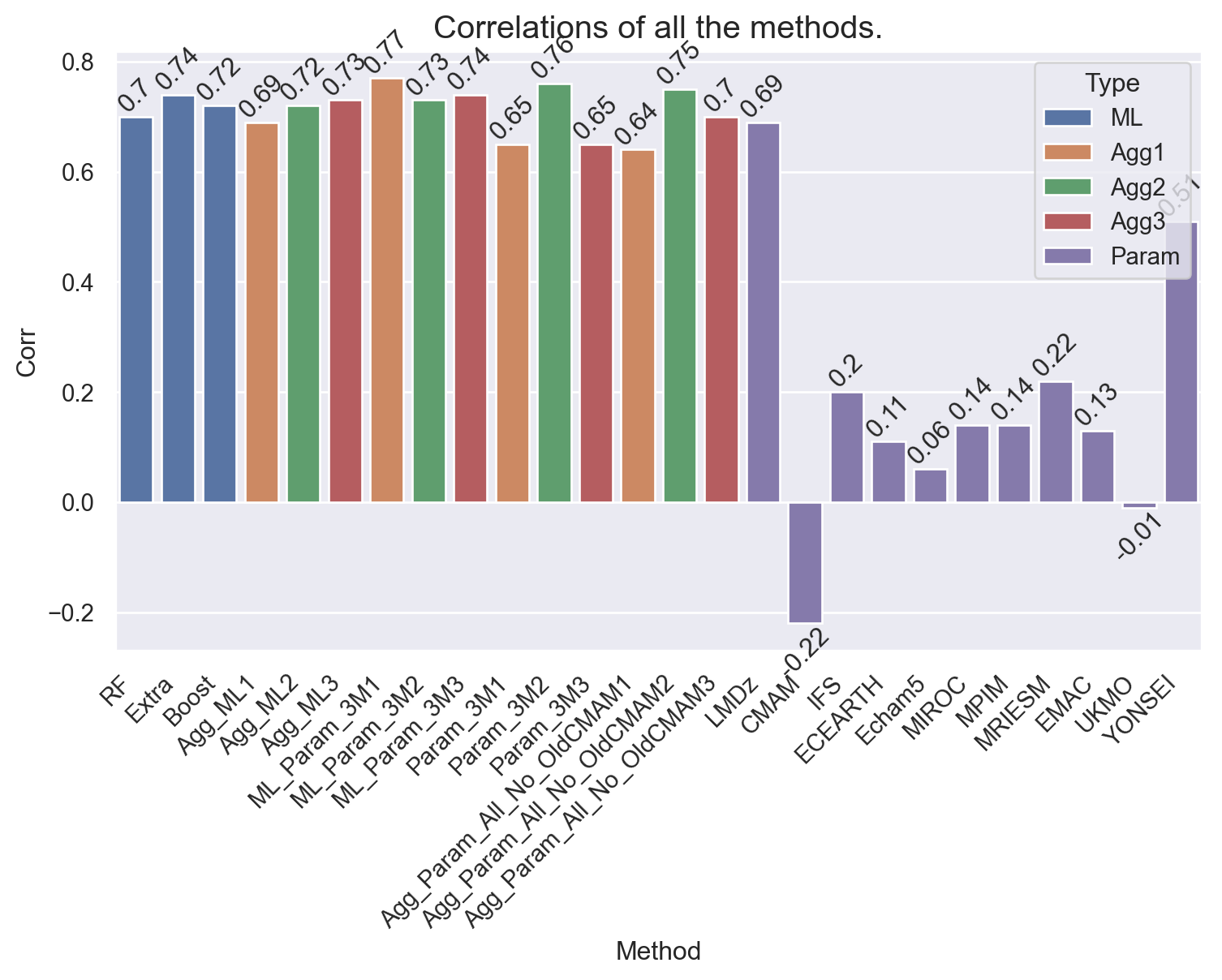

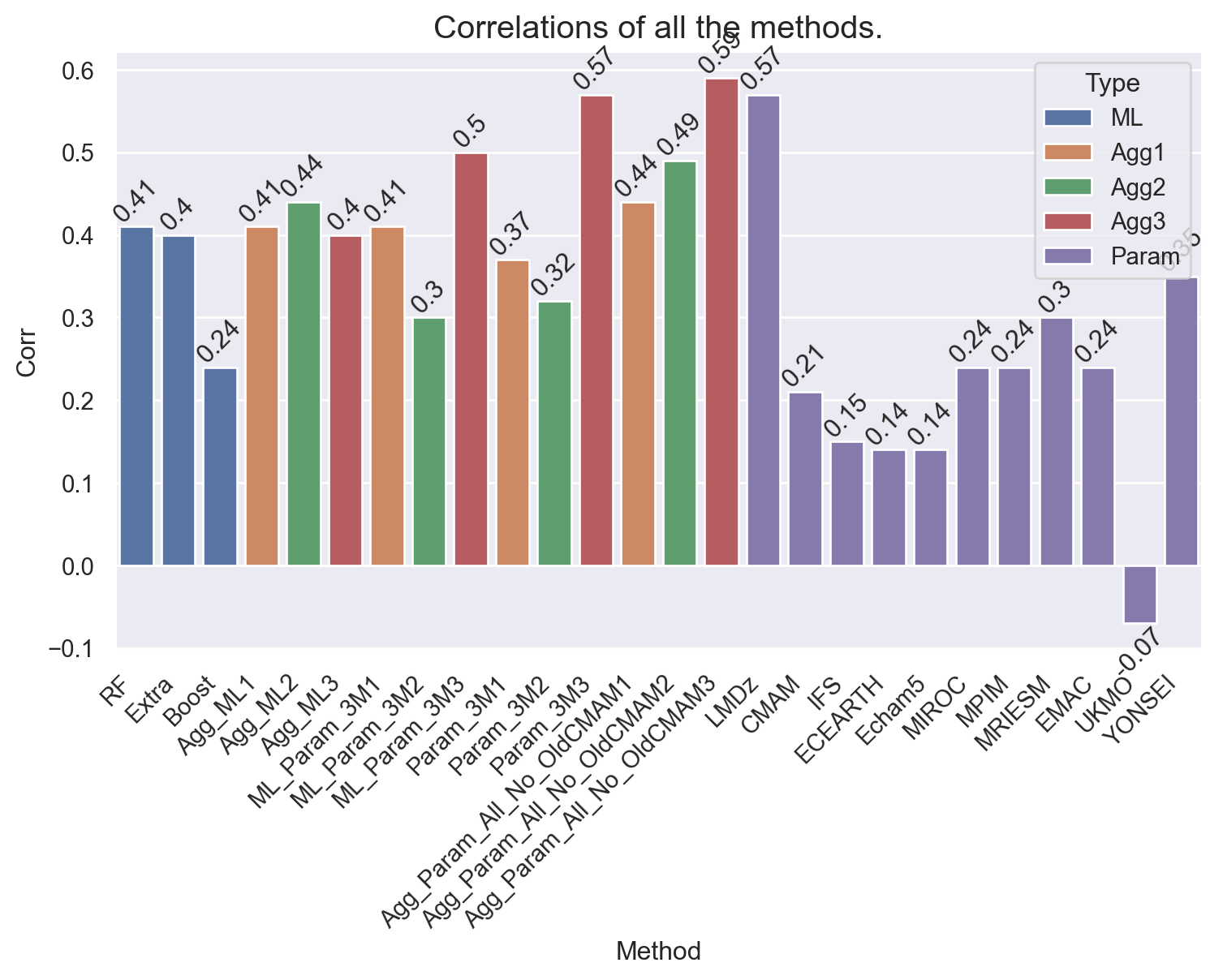

plt.title("Correlations of all the methods.", fontsize = 15)
plt.show()

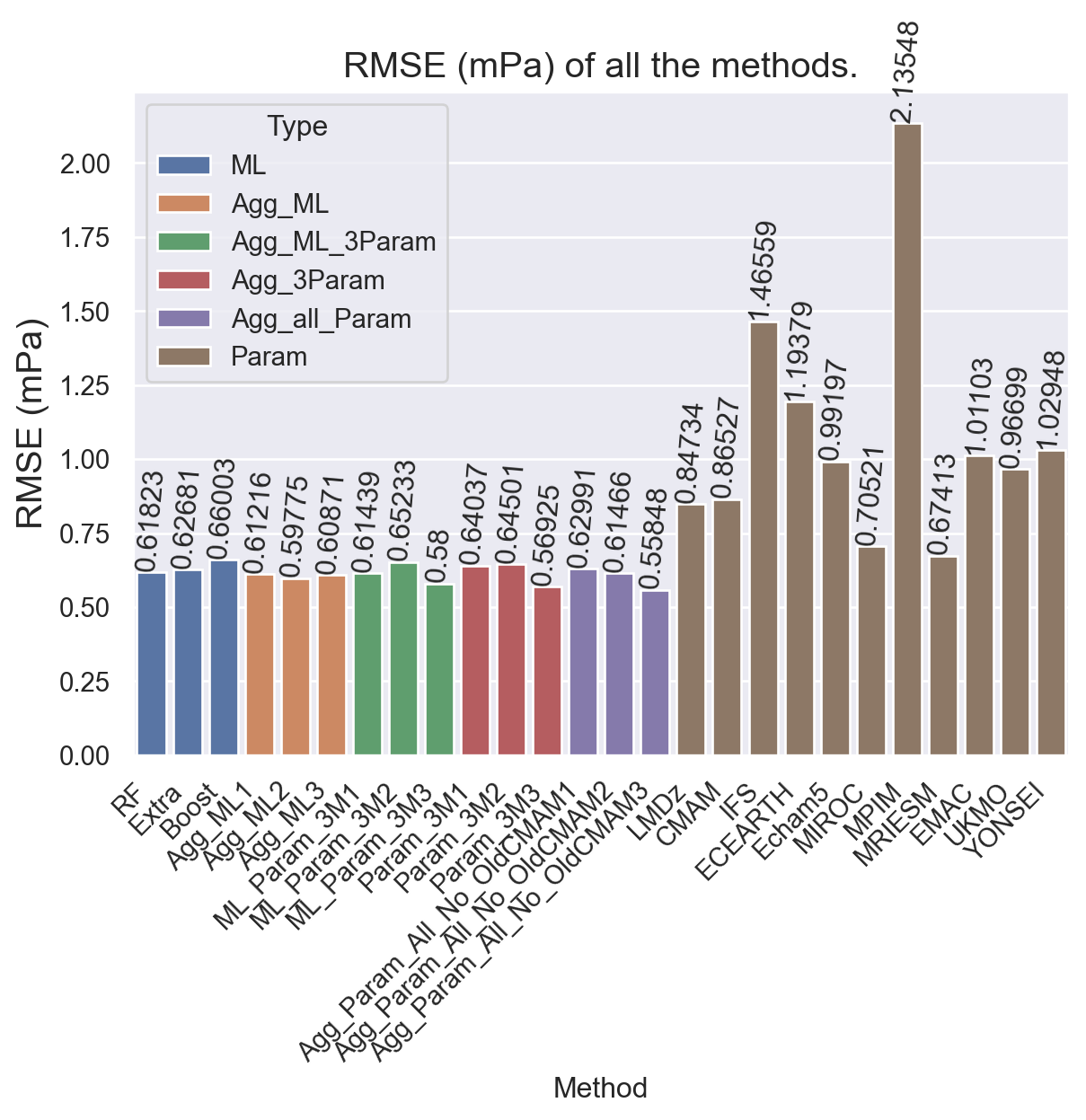

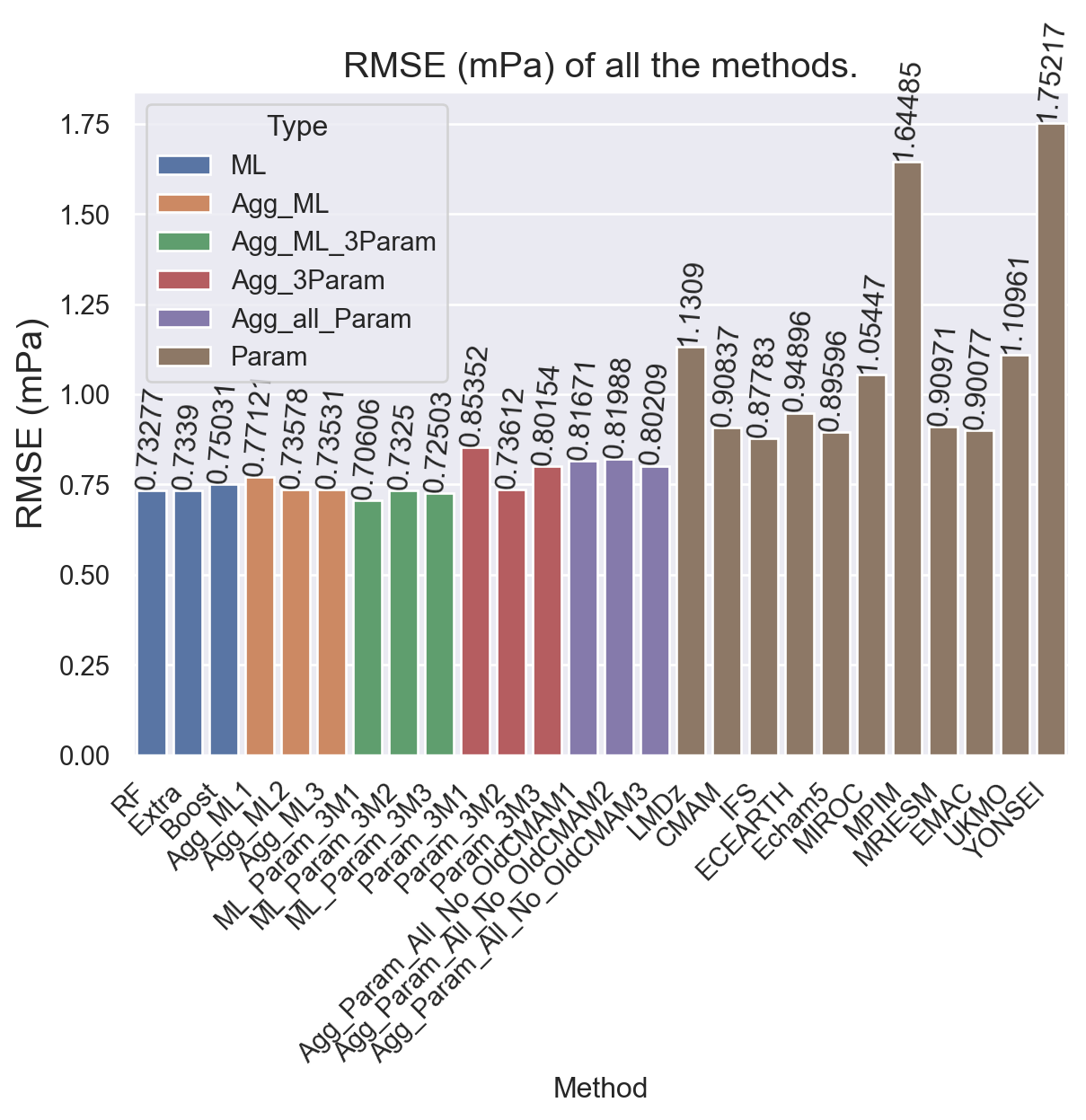

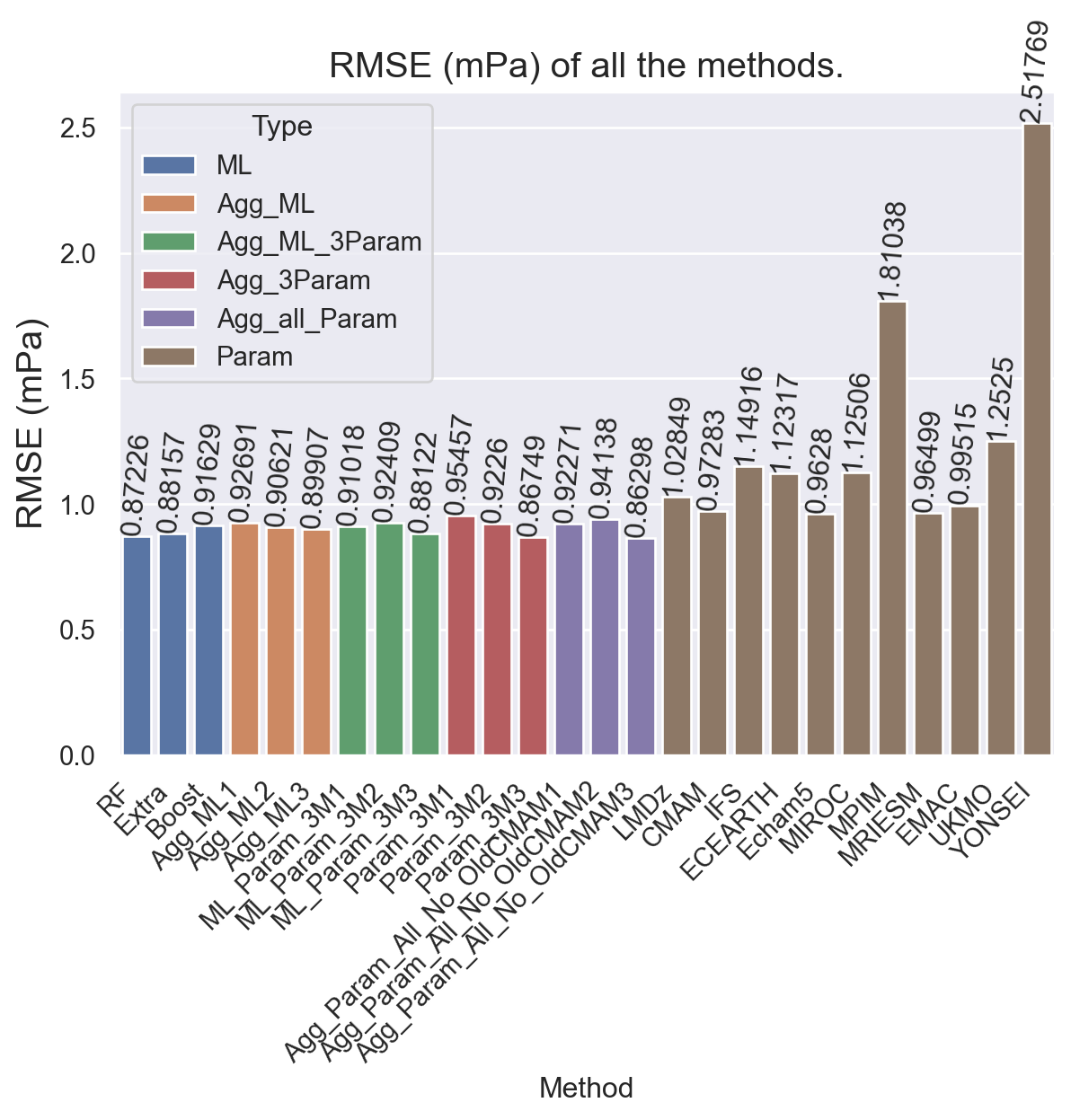

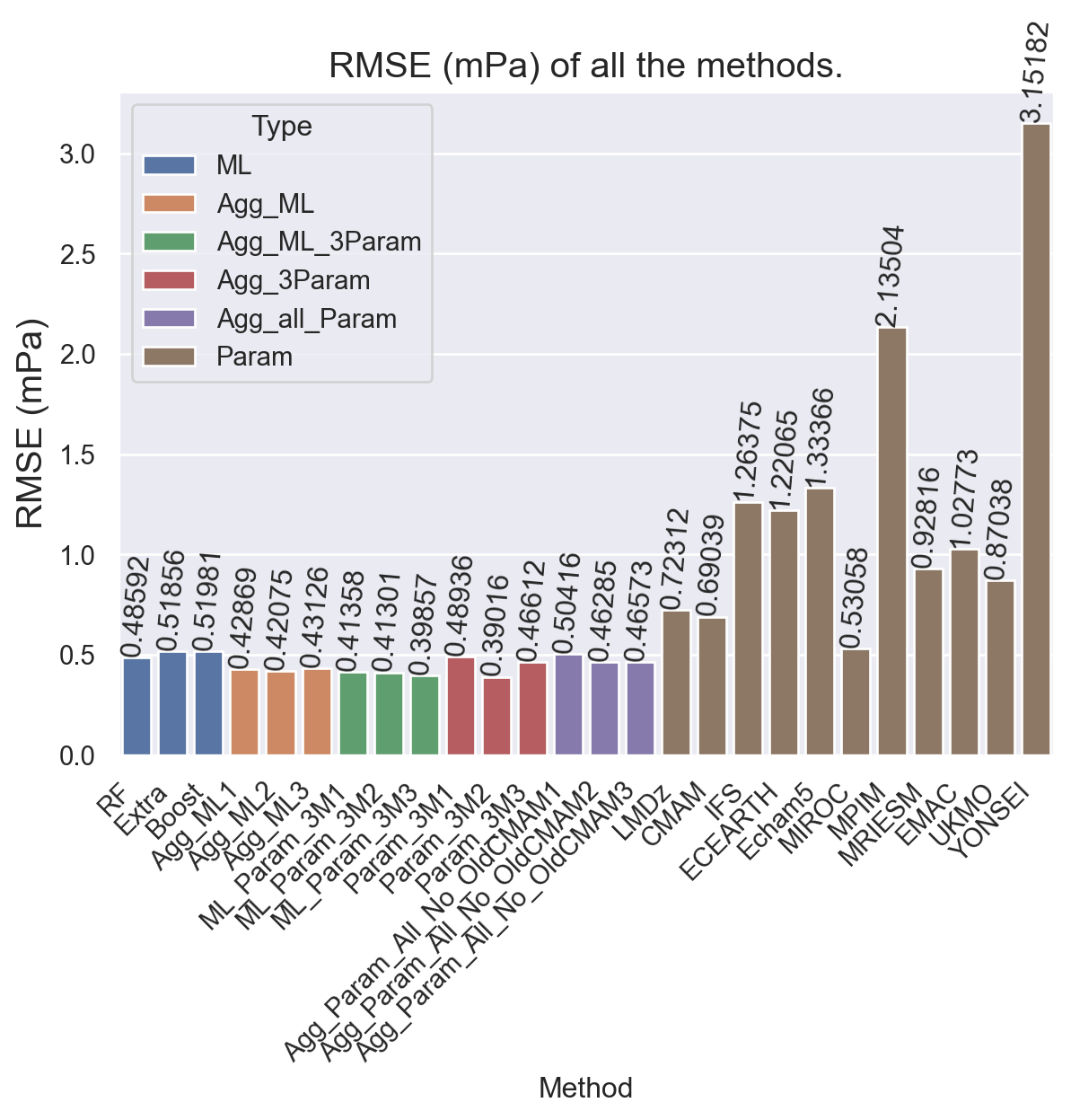

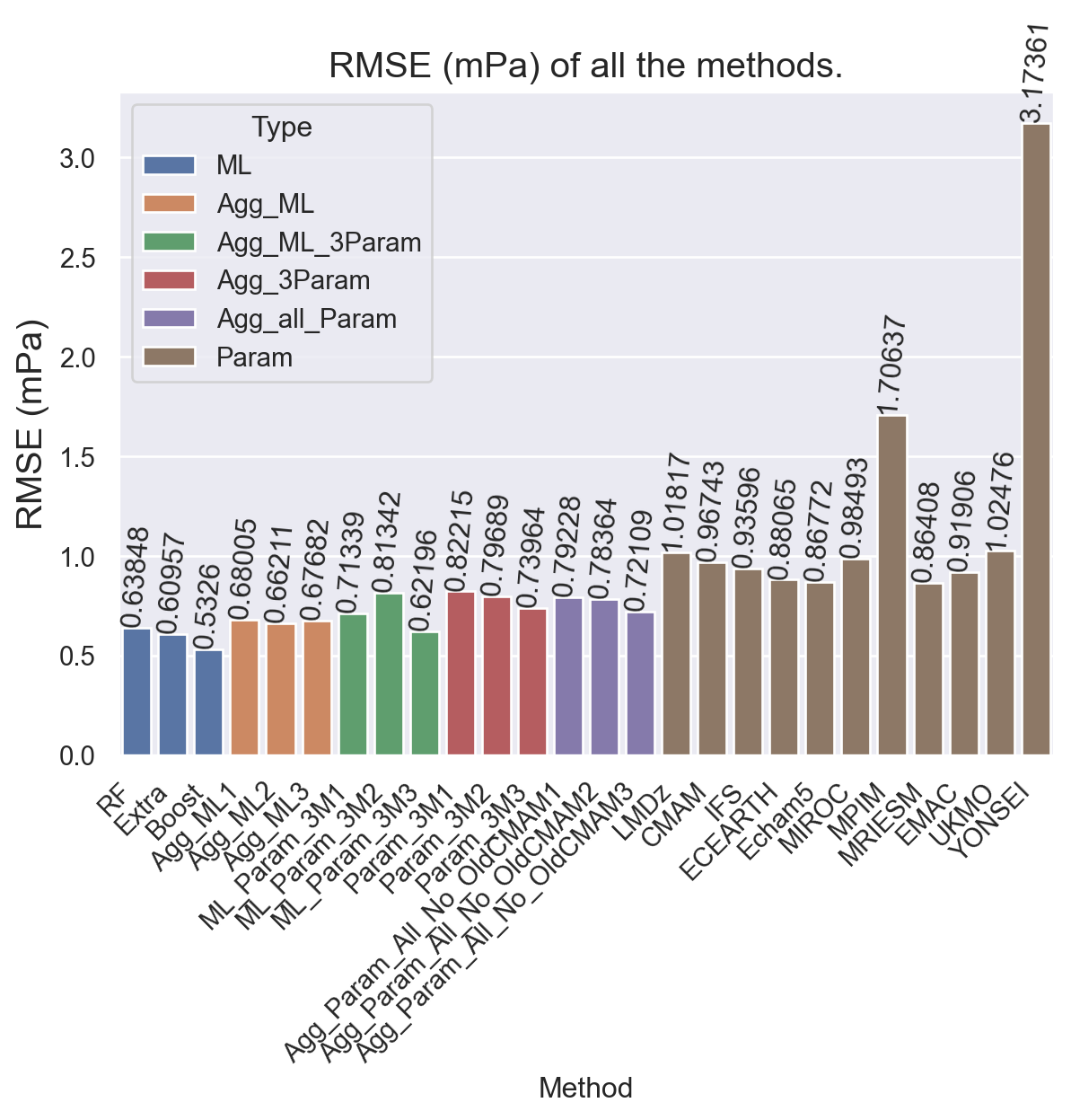

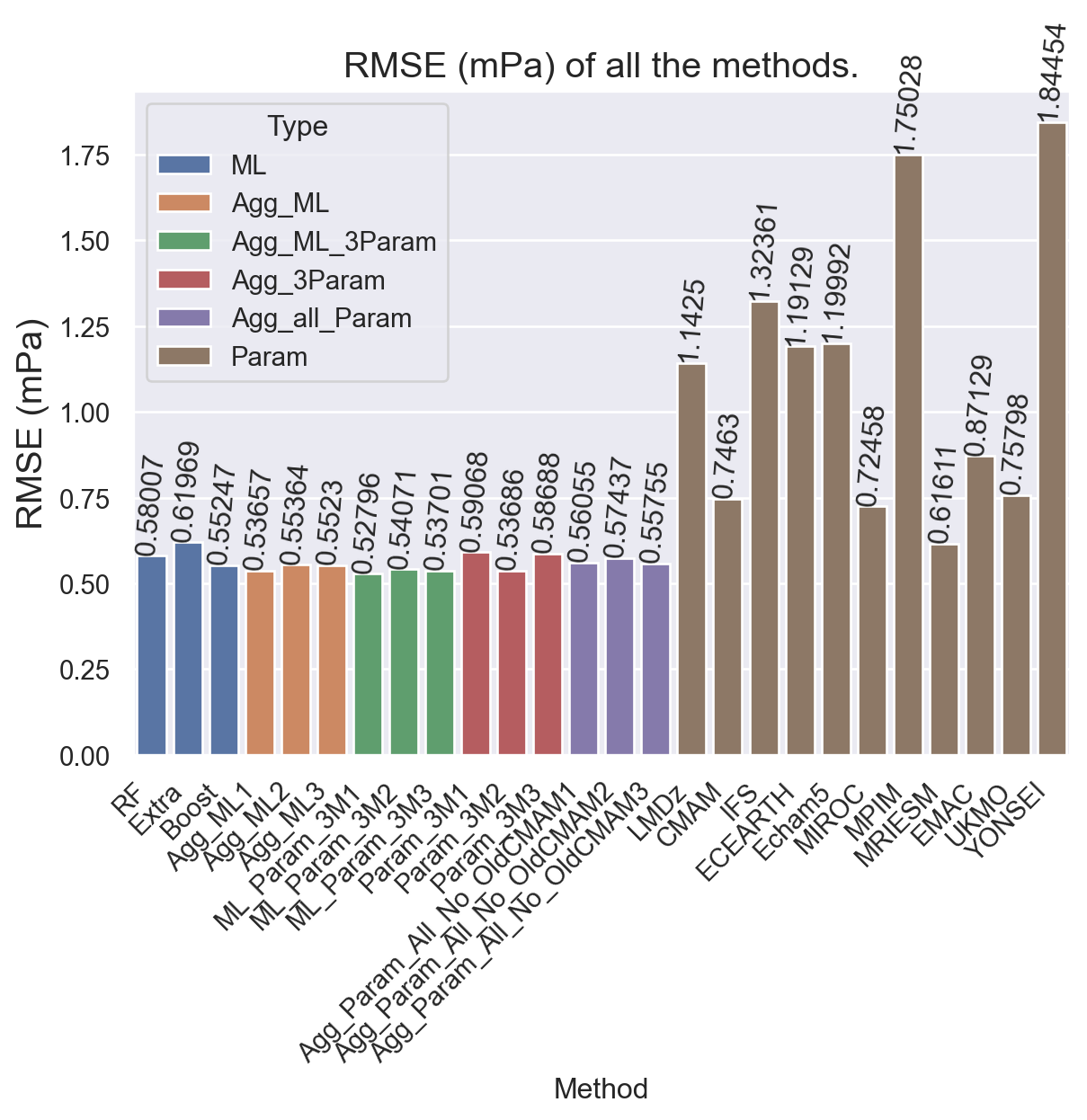

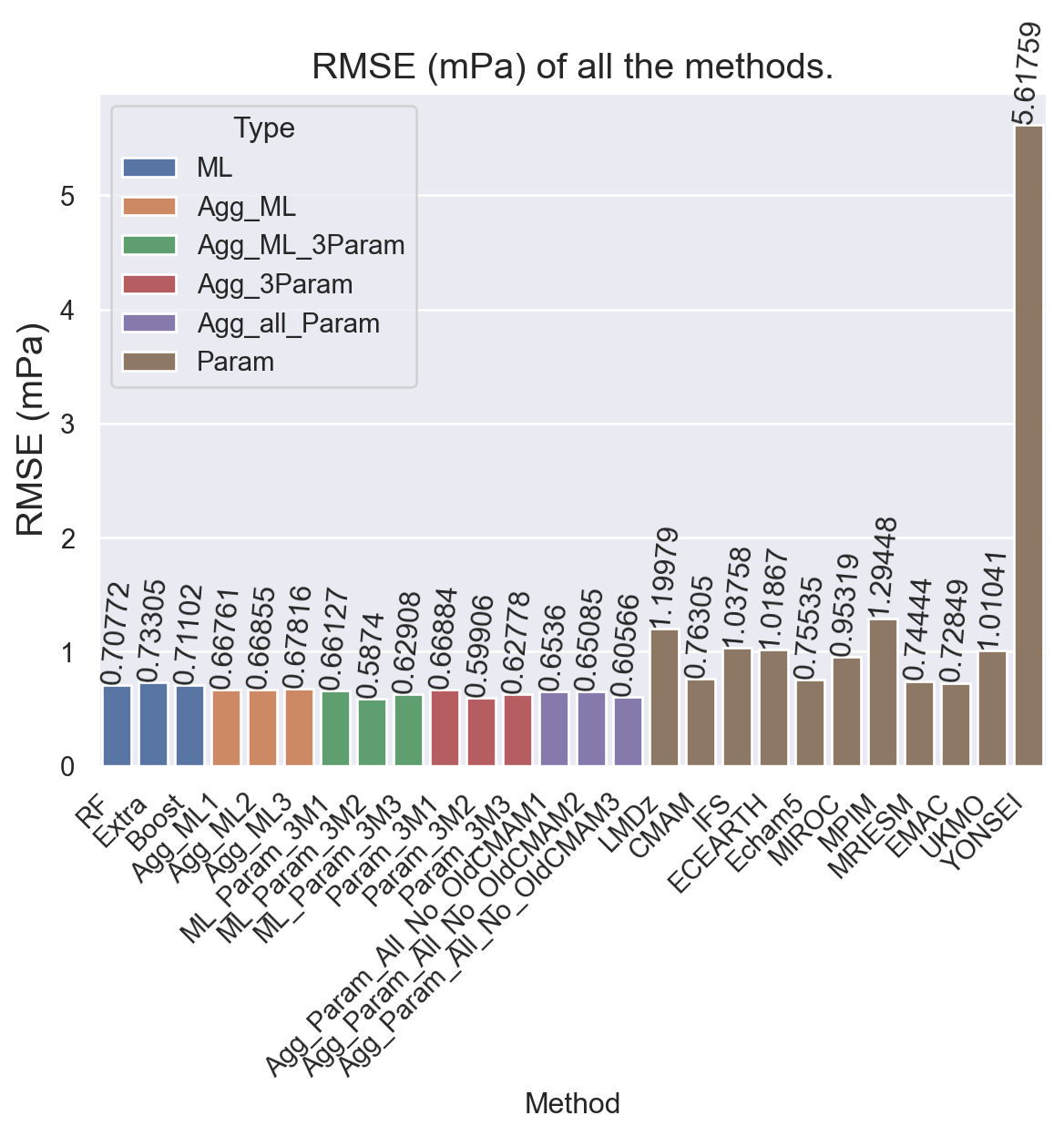

rmse_data = pd.DataFrame({
'RMSE' : np.array([rmse_rf, rmse_ex, rmse_boost] + rmse_agg + rmse_param),
'Method' : ['RF', 'Extra', 'Boost'] + corr_type + list(param.columns),
'Type' : ['ML', 'ML', 'ML'] + list(agg_methods_) + list(np.repeat('Param', param.shape[1]))
})
ax2 = sns.barplot(
rmse_data,
x = "Method",
y = "RMSE",
hue = 'Type'
)
ax2.set_xticklabels(rmse_data.Method, rotation=45, ha="right")
ax2.bar_label(ax2.containers[0], rotation = 85)
ax2.bar_label(ax2.containers[1], rotation = 85)
ax2.bar_label(ax2.containers[2], rotation = 85)
ax2.bar_label(ax2.containers[3], rotation = 85)
ax2.bar_label(ax2.containers[4], rotation = 85)
ax2.bar_label(ax2.containers[5], rotation = 85)
ax2.set_ylabel("RMSE (mPa)", fontsize = 15)

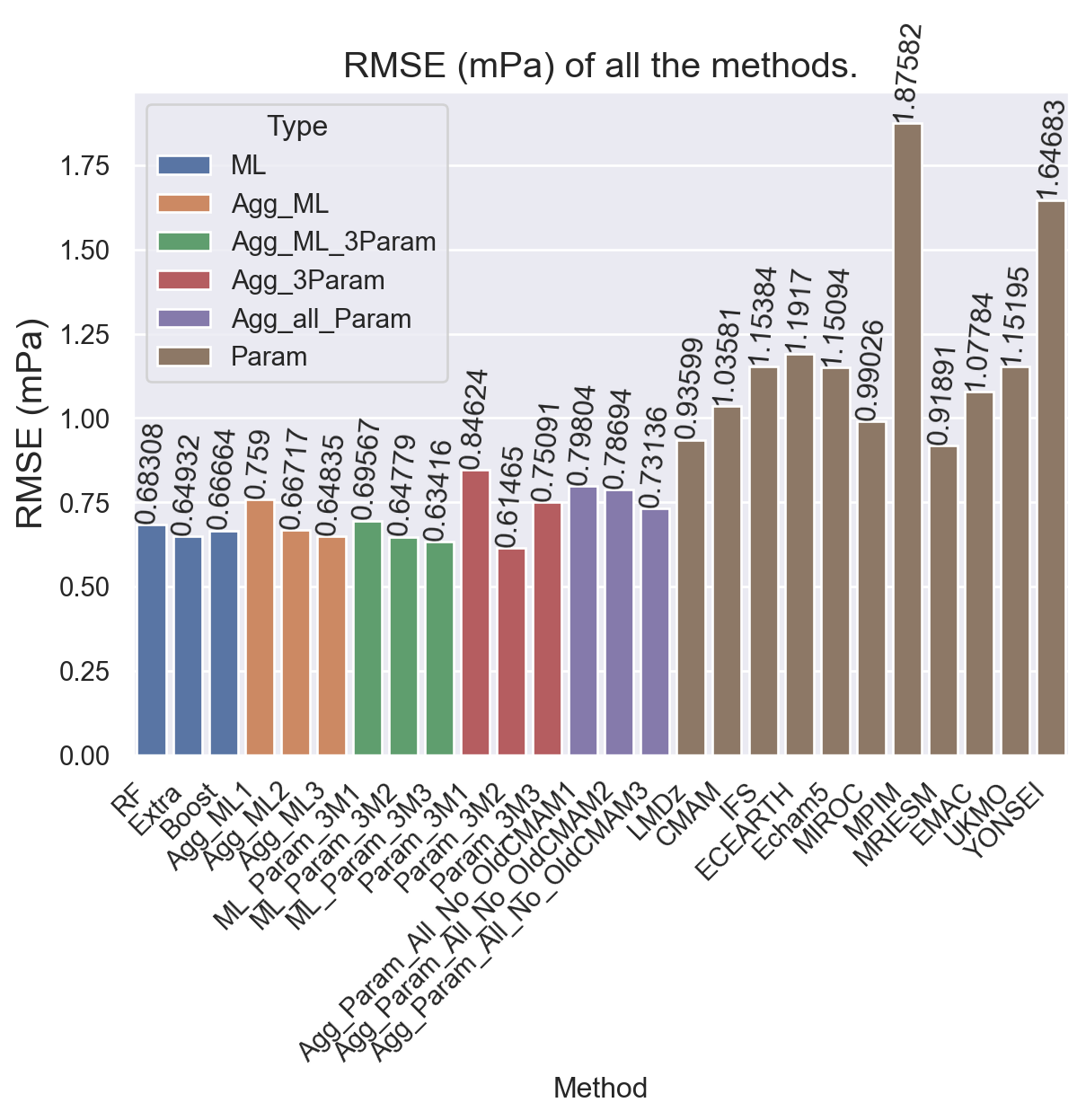

plt.title("RMSE (mPa) of all the methods.", fontsize = 15)
plt.show()
print("Balloon " + str(i+1) + "... Done!")
df = pd.DataFrame(all_correlation_coef, columns = ['RF', 'Extra', 'Boost'] + corr_type + list(param.columns))
df.to_csv("C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Use2021_predict2019/Aggregation_with_3_Parameterization/Slides/all_corr_abs.csv")
df_rmse = pd.DataFrame(all_rmse, columns = ['RF', 'Extra', 'Boost'] + corr_type + list(param.columns))
df_rmse.to_csv("C:/Users/Sothea Has/Postdoc_Sothea/Codes/Second_Part/Use2021_predict2019/Aggregation_with_3_Parameterization/Slides/all_rmse_abs.csv")
Balloon 1... Done!
Balloon 2... Done!
Balloon 3... Done!
Balloon 4... Done!
Balloon 5... Done!
Balloon 6... Done!
Balloon 7... Done!
Balloon 8... Done!
