Advanced Data Visualization

INS-605: Data Analysis

Lecturer: Dr. Sothea HAS

1 Intro & Motivation

1.1 Introduction

In Data Visualization of Data Analysis I, we learned:
- How to inspect a single variable individually
- Uncover relationship between multiple variables
- Detect trend/evolution of variables…
All these are to extract knowledge from the data only.

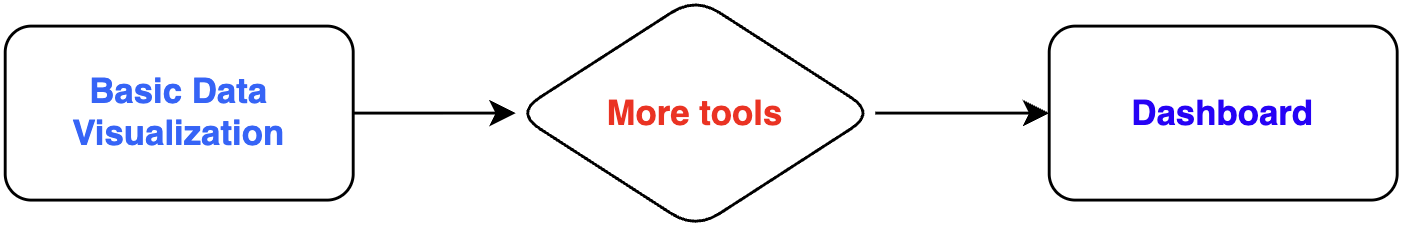

We now learn additional tools to build a presentable Dashboard.

We will use Amazon Product Rating as a case study.

1.2 Dashboarding process

General view of dashboarding:

          ┌──────────────────────┐
          │  Business objective  │
          └──────────┬───────────┘
                     ▼
                 ┌───────┐
                 │  KPIs │
                 └───┬───┘
                     ▼
   ┌────────────────────────────────────┐
   │ Understanding and prepare the data │
   └─────────────────┬──────────────────┘
                     ▼
┌──────────────────────────────────────────┐
│ Explore the data according to key points │
└────────────────────┬─────────────────────┘
                     ▼
      ┌─────────────────────────────┐
      │ Validate → test → iterate ↩ │
      └─────────────────────────────┘

Key: Business objective drives everything a dashboard will cover.

Business objective: Why does this dashboard exist? Audiences?
Key Point Indicators: Measurable points supporting the objective. Ex:
- Number of Products
- Number of Ratings
- Average Rating
- % of High Ratings…
Data wrangling: Prepare the data.
Explore the data: Analyze toward the KPIs & select visual designs.
Validate \(\to\) test/feedback \(\to\) revise \(\hookleftarrow\).

Data wrangling is very important as in business, beautiful dashboard built on wrong info is worst than no dashboard at all.

1.2 Dashboarding process (cont.)

Ex: Amazon Product Rating.

       ┌────────────────────────────┐
       │ Boost platform performance │
       └─────────────┬──────────────┘
                     ▼
     ┌───────────────────────────────┐
     │ Customer/Product/Rating Trend │
     └───────────────┬───────────────┘
                     ▼
             ┌────────────────┐
             │ Data Wrangling │
             └───────┬────────┘
                     ▼
 ┌─────────────────────────────────────────┐
 │ Explore the data & select graph designs │
 └───────────────────┬─────────────────────┘
                     ▼
      ┌─────────────────────────────┐
      │ Validate → test → iterate ↩ │
      └─────────────────────────────┘

Target audience: Marketing, sales and product managers.

Q1: What 3-4 KPIs would you highlight on the dashboard?

2 Overall view

2.1 Overview dashboard

Data Wrangling

Quick column normalization:

# Normalize cols
data.columns = (
    data.columns
      .str.strip()
      .str.lower()
)
# Map new names:
rename_map = {}
possible_names = {
    "userid": "user_id",
    "productid": "product_id",
    "producttype": "product_type",
    "rating": "rating",
    "timestamp": "timestamp",
}
for col in data.columns:
    if col in possible_names:
        rename_map[col] = possible_names[col]
data = data.rename(columns=rename_map)

We shall ensure data types.
Drop/impute missing values.
Add: date, year, month for analysis.

data["rating"] = pd.to_numeric(
    data["rating"],
    errors="coerce")

data["timestamp"] = pd.to_numeric(
    data["timestamp"],
    errors="coerce"
)

# UNIX timestamps -> date time
data["date"] = pd.to_datetime(
    data["timestamp"],
    unit="s",
    errors="coerce"
)
data["year"] = data["date"].dt.year
data["month"] = data["date"].dt\
    .to_period("M").astype(str)

# Drop NA
data = data.dropna()

print(data.shape)

(1348246, 9)

Overall: KPIs

Four KPIs are
- Toal reviews
- Number of customers
- Number of products
- Average rating

Code

kpi = pd.DataFrame({
    'tot_rev': [len(data)],
    'num_cus': [data["user_id"].nunique()],
    'num_prod': [data["product_id"].nunique()],
    'avg_rating': [data["rating"].mean()]},
    index=['KPI'])
kpi.T

	KPI
tot_rev	1.348246e+06
num_cus	8.837530e+05
num_prod	2.383800e+04
avg_rating	4.145732e+00

We build a function make_kpi().

import plotly.graph_objects as go

def make_kpi(value, title, color, value_format=",d"):
    fig = go.Figure()   # initalize `go` object

    fig.add_trace(      # add trace as `indicator`
        go.Indicator(
            mode="number",
            value=value, # `value` argument is used.
            title={
                "text": title,
                "font": {
                    "size": 15,
                    "color": color
                }
            },
            number={
                "valueformat": value_format,
                "font": {
                    "size": 28,
                    "color": "#F5F5F5" # white text
                }
            }
        )
    )
    fig.update_layout(
        paper_bgcolor="#454545", # bk color
        plot_bgcolor="#454545",  # bk color
        margin=dict(l=10, r=10, t=90, b=10),
        height=140
    )

    return fig

Overall: KPIs (cont.)

Apply on Total reviews:

Code

# Apply to 'Total reviews'
kpi_reviews = make_kpi(
    kpi["tot_rev"][0],
    "Total Reviews",
    "#4CC9F0"
)
kpi_reviews\
    .update_layout(
        width=450,
        height=175
    ).show()

On Total customers:

We build a function make_kpi().

import plotly.graph_objects as go

def make_kpi(value, title, color, value_format=",d"):
    fig = go.Figure()   # initalize `go` object

    fig.add_trace(      # add trace as `indicator`
        go.Indicator(
            mode="number",
            value=value, # `value` argument is used.
            title={
                "text": title,
                "font": {
                    "size": 15,
                    "color": color
                }
            },
            number={
                "valueformat": value_format,
                "font": {
                    "size": 28,
                    "color": "#F5F5F5" # white text
                }
            }
        )
    )
    fig.update_layout(
        paper_bgcolor="#454545", # bk color
        plot_bgcolor="#454545",  # bk color
        margin=dict(l=10, r=10, t=90, b=10),
        height=140
    )

    return fig

Graphs

Reveiws by product types.

Code

## category summary
category_summary = (
    data.groupby("product_type")
      .agg(
          reviews=("rating", "size"),
          avg_rating=("rating", "mean"),
          customers=("user_id", "nunique"),
          products=("product_id", "nunique")
      )
      .reset_index()
      .sort_values("reviews", ascending=False)
)
# select top 15 products
top_categories = category_summary.head(15)
# Initialize `go` object
fig_product = go.Figure()
# Create bar chart
fig_product.add_trace(
    go.Bar(
        x=top_categories["reviews"][::-1],
        y=top_categories["product_type"][::-1],
        orientation="h",
        marker_color="#4CC9F0"
    )
)
fig_product.update_yaxes(
    showgrid=False
)
# Set the graph property
fig_product.update_layout(
    width=450,
    height=430,
    title="Reviews by Product Type",
    paper_bgcolor="#454545",
    plot_bgcolor="#454545",
    font=dict(color="#F5F5F5"),
    showlegend=False
).show()

Rating & Reveiw Trend:

Code

# Review activity
fig_rating = go.Figure()
fig_rating.add_trace(
    go.Bar(
        x=rating_summary["rating"],
        y=rating_summary["reviews"],
        text=rating_summary["reviews"],
        texttemplate="%{text:,}",
        textposition="outside",
        marker_color="#F4A261"
    )
)
fig_rating.update_xaxes(
    showgrid=False
)
# Set high enough box to show all numbers
max_reviews = rating_summary["reviews"].max()
fig_rating.update_yaxes(
    range=[0, max_reviews * 1.15]
)
fig_rating.update_layout(
    height=180,
    width=450,
    title="Rating Distribution",
    paper_bgcolor="#454545",
    plot_bgcolor="#454545",
    font=dict(color="#F5F5F5"),
    showlegend=False
).show()

Code

# Review activity
fig_activity = go.Figure()
fig_activity.add_trace(
    go.Scatter(
        x=monthly["date"],
        y=monthly["reviews"],
        mode="lines+markers",
        line=dict(
            color="#72D572",
            width=3
        ),
        marker=dict(size=6)
    )
)
fig_activity.update_xaxes(
    showgrid=False
)
fig_activity.update_layout(
    height=180,
    width=450,
    title="Review Activity Over Time",
    paper_bgcolor="#454545",
    plot_bgcolor="#454545",
    font=dict(color="#F5F5F5"),
    showlegend=False
)

Assemble everything

We assemble everythin using make_subplots():

# Assemble everything with make_subplots
from plotly.subplots import make_subplots
fig_overall = make_subplots(
    rows=2,     # number of rows
    cols=12,    # number of cols but break into 4 and 3
    specs=[
        [
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None
        ],
        [
            {"type": "bar", "colspan": 4}, None, None, None,
            {"type": "bar", "colspan": 4}, None, None, None,
            {"type": "scatter", "colspan": 4}, None, None, None
        ]
    ],          # Define different cols between 1st and 2nd row.
    subplot_titles=[
        "Total Reviews",
        "Total Customers",
        "Total Products",
        "Average Rating",
        "Reviews by Product Type",
        "Rating Distribution",
        "Review Activity Over Time"
    ],          # Define subplots' names
    vertical_spacing=0.05,
    horizontal_spacing=0.05
)

Think about it as an empty canvas to be painted on.

KPI can be added as trace to the empty canvas.

# Add KPI traces
fig_overall.add_trace(
    kpi_reviews.data[0],
    row=1, col=1
)
fig_overall.add_trace(
    kpi_customers.data[0],
    row=1, col=4
)
fig_overall.add_trace(
    kpi_products.data[0],
    row=1, col=7
)
fig_overall.add_trace(
    kpi_rating.data[0],
    row=1, col=10
)

The rests and their properties are added the same way:

Code

# Add product:
fig_overall.add_trace(
    fig_product.data[0],
    row=2, col=1
)

##-------> Product property
fig_overall.update_xaxes(
    showgrid=False,
    row=2, col=1
)
fig_overall.update_yaxes(
    showgrid=False,
    row=2, col=1
)

# Add Rating:
fig_overall.add_trace(
    fig_rating.data[0],
    row=2, col=5
)
##-------> Rating graph properties
max_reviews = rating_summary["reviews"].max()
fig_overall.update_yaxes(
    range=[0, max_reviews * 1.15],
    row=2,
    col=5
)
fig_overall.update_xaxes(
    showgrid=False,
    color=MUTED_TEXT,
    tickfont=dict(color=MUTED_TEXT),
    row=2,
    col=5
)

# Add Review Trend:
fig_overall.add_trace(
    fig_activity.data[0],
    row=2, col=9
)
##-------> Review activity
fig_overall.update_xaxes(
    showgrid=False,
    color=MUTED_TEXT,
    tickfont=dict(color=MUTED_TEXT),
    row=2,
    col=9
)

Assemble everything (cont.)

Put the boxes around KPIs:

# Define the four KPI card positions
kpi_boxes = [
    (0.010, 0.215, KPI_COLORS[0]),
    (0.275, 0.470, KPI_COLORS[1]),
    (0.535, 0.730, KPI_COLORS[2]),
    (0.795, 1.000, KPI_COLORS[3])
]

for x0, x1, color in kpi_boxes:
    fig_overall.add_shape(
        type="rect",
        xref="paper",
        yref="paper",
        x0=x0,
        x1=x1,
        y0=0.58,
        y1=0.98,

        fillcolor=CARD_COLOR,
        line=dict(
            color=color,
            width=2
        ),
        layer="below"
    )

Final full layout touch.

# Full layout
fig_overall = fig_overall.update_layout(
    title=dict(
        text="Amazon Product Reviews — Overall View",
        font=dict(
            size=24,
            color=TEXT_COLOR
        ),
        x=0.02,
        xanchor="left"
    ),
    height=530,
    width=970,
    paper_bgcolor=BG_COLOR,
    plot_bgcolor=BG_COLOR,
    showlegend=False,
    margin=dict(
        l=60, r=40, t=90, b=50
    ),
    font=dict(
        family="Arial",
        color=TEXT_COLOR
    )
)

Process: init. go objects \(\to\) make_subplots().

One can also do: init. make_subplots \(\leftarrow\) go.

Final result

fig_overall.show()

3 Customer veiw

3.1 Customer view

What aspects of customers would you consider given the following information:

['user_id', 'product_id', 'product_type', 'rating', 'date', 'year', 'month']

3.1 Customer view

Customer information we can compute:
- How enganged are they?
- What do they buy/review?
- How do their ratings behave?
- How active they are?…
We compute those aspects:

customer_summary = (
    data.groupby("user_id")
      .agg(
          reviews=("rating", "size"),
          products=("product_id", "nunique"),
          product_types=("product_type", "nunique"),
          avg_rating=("rating", "mean"),
          first_review=("date", "min"),
          last_review=("date", "max")
      )
      .reset_index()
)

customer_summary["active_days"] = (
    customer_summary["last_review"]
    - customer_summary["first_review"]
).dt.days

customer_summary["is_repeat"] = (
    customer_summary["reviews"] > 1
)

This’s the core table for customer view.

Customer KPIs

Number of customers.
Average number of reviews.
Average rating per customer.
% of repeat customers.

total_customers = (
    customer_summary["user_id"].nunique()
)
avg_reviews_customer = (
    customer_summary["reviews"].mean()
)
repeat_customer_rate = (
    customer_summary["is_repeat"].mean() * 100
)
avg_customer_rating = (
    customer_summary["avg_rating"].mean()
)

These are four indicators for our cumstomer dashboard.
We start from make_subplots and eventually add more elements.

What are those elements?
1. Highly engaged customers.
2. Highly satisfied customers.
3. Satisfaction vs engagement.
What graph would you use for each?

Customer KPIs

Number of customers.
Average number of reviews.
Average rating per customer.
% of repeat customers.

total_customers = (
    customer_summary["user_id"].nunique()
)
avg_reviews_customer = (
    customer_summary["reviews"].mean()
)
repeat_customer_rate = (
    customer_summary["is_repeat"].mean() * 100
)
avg_customer_rating = (
    customer_summary["avg_rating"].mean()
)

These are four indicators for our cumstomer dashboard.
We start from make_subplots and eventually add more elements.

Initialize fig_customer of make_subplots object.

fig_customer = make_subplots(
    rows=2,
    cols=12,
    specs=[
        # Row 1: 4 KPI
        [
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None,
            {"type": "indicator", "colspan": 3}, None, None
        ],
        # Row 2: 2 charts
        [
            {"type": "bar", "colspan": 4}, None, None, None,
            {"type": "xy", "colspan": 4}, None, None, None,
            {"type": "bar", "colspan": 4}, None, None, None
        ],
    ],
    subplot_titles=[
        "Total Customers", "Avg Review", "Repeat Rate", "Avg Rating",
        "Customer Reviews",
        "Customer Engagement vs Satisfaction",
        "Customers Satisfaction"
    ],
    vertical_spacing=0.05,
    horizontal_spacing=0.08
)

Customer KPIs (cont.)

We then add all the KPIs:

# Add number of customers
fig_customer = fig_customer.add_trace(
    go.Indicator(
        mode="number",
        value=total_customers, # alr computed
        title=dict(
            text="Total Customers",
            font=dict(
                size=15,
                color=KPI_COLORS[0]
            )
        ),
        number=dict(
            valueformat=",d",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=1
)

The rests are added the same way.

Code

fig_customer = fig_customer.add_trace(
    go.Indicator(
        mode="number",
        value=avg_reviews_customer,
        title=dict(
            text="Avg Reviews / Customer",
            font=dict(
                size=15,
                color=KPI_COLORS[1]
            )
        ),
        number=dict(
            valueformat=".1f",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=4
)
fig_customer = fig_customer.add_trace(

    go.Indicator(
        mode="number",
        value=repeat_customer_rate,
        title=dict(
            text="Repeat Customer Rate",
            font=dict(
                size=15,
                color=KPI_COLORS[2]
            )
        ),
        number=dict(
            valueformat=".1f",
            suffix="%",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=7
)
fig_customer = fig_customer.add_trace(
    go.Indicator(
        mode="number",
        value=avg_customer_rating,
        title=dict(
            text="Avg Rating",
            font=dict(
                size=15,
                color=KPI_COLORS[3]
            )
        ),
        number=dict(
            valueformat=".2f",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=10
)

We add boxes to KPIs:

KPI_BOXES = [
    (0.01, 0.185),
    (0.245, 0.485),
    (0.520, 0.750),
    (0.815, 0.998)
]
for (x0, x1), color in zip(
        KPI_BOXES,
        KPI_COLORS):
    fig_customer = fig_customer.add_shape(
        type="rect",
        xref="paper",
        yref="paper",
        x0=x0,
        x1=x1,
        y0=0.58,
        y1=0.98,
        fillcolor=CARD_COLOR,
        line=dict(
            color=color,
            width=2),
        layer="below")

Current result can be viewed using fig_customer.show().

Customer charts

Highly engaged customers.

# Sort reviews
high_engagement = customer_summary\
    .nlargest(10, "reviews")\
    .sort_values('reviews',
        ascending=False)
fig_customer = fig_customer.add_trace(
    go.Bar(
        y=high_engagement["reviews"],
        x=high_engagement["user_id"].astype(str),
        orientation="v",
        marker=dict(
            color=KPI_COLORS[0]
        ),
        hovertemplate=(
            "<b>Customer: %{x}</b><br>"
            "Reviews: %{y:,}"
            "<extra></extra>"
        )
    ),
    row=2,
    col=1
)

Highly engagement can indicate potential customers or problems (fake reviews).

Highly satisfied customers.

# Sort reviews
satisfied_customers = (
    data.assign(
        high_rating=data['rating'].isin([4,5])
    ).groupby("user_id")
    .agg(
        high_ratings=("high_rating", 'sum'),
        reviews=("rating", "size"),
        avg_rating=("rating", "mean")
    )
    .reset_index()
    .nlargest(10, "high_ratings")
    .sort_values("high_ratings", ascending=False)
)
fig_customer = fig_customer.add_trace(
    go.Bar(
        y=satisfied_customers["high_ratings"],
        x=satisfied_customers["user_id"].astype(str),
        orientation="v",
        marker=dict(
            color=KPI_COLORS[3]),
        hovertemplate=(
            "<b>Customer: %{x}</b><br>"
            "High Rating Count: %{y:,}"
            "<extra></extra>"
        )
    ),
    row=2,
    col=9
)

Customer charts (cont.)

Engagement vs satisfaction.

comparison = (
    customer_summary[
        ["user_id", "reviews", "avg_rating"]
    ]
    .merge(
        satisfied_customers[
            ["user_id", "high_ratings"]
        ],
        on="user_id",
        how="left"
    )
)

comparison["high_ratings"] = (
    comparison["high_ratings"]
    .fillna(0)
)

Scatter plot is a good graph:

Code

eng_sat = comparison.iloc[:10000]
fig_customer = fig_customer.add_trace(
    go.Scatter(
        x=eng_sat["reviews"],
        y=eng_sat["avg_rating"],
        mode="markers",
        marker=dict(
            size=(
                (eng_sat["avg_rating"] * 10)
                .clip(lower=1)
            ),
            color = KPI_COLORS[2],
            line=dict(
                color="#F5F5F5",
                width=0.5
            ),
            sizemode="area"
        ),
        customdata=np.column_stack([
            eng_sat["user_id"],
            eng_sat["high_ratings"]
        ]),
        hovertemplate=(
            "<b>Customer %{customdata[0]}</b><br>"
            "Reviews: %{x:,}<br>"
            "Avg Rating: %{y:.2f}<br>"
            "High Ratings: %{customdata[1]:,}<br>"
            "<extra></extra>"
        )
    ),
    row=2,
    col=5
)

# Mean values
x_mean = eng_sat["reviews"].mean()
y_mean = eng_sat["avg_rating"].mean()

Final Touch

Code

fig_customer.update_xaxes(
    title_text="Customers",
    color=MUTED_TEXT,
    showgrid=False,
    tickangle=-45,
    row=2,
    col=1
)

fig_customer.update_yaxes(
    title_text="Reviews",
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=1
)

fig_customer.update_xaxes(
    title_text="Customers",
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    tickangle=-45,
    row=2,
    col=9
)

fig_customer.update_yaxes(
    title_text="High Rating Counts",
    categoryorder="total ascending",
    color=MUTED_TEXT,
    showgrid=False,
    row=2,
    col=9
)

fig_customer.update_xaxes(
    title_text="Engagement",
    color=MUTED_TEXT,
    showgrid=False,
    row=2,
    col=5
)

fig_customer.update_yaxes(
    title_text="Satisfaction",
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=5
)
fig_customer\
    .update_layout(
        width=970,
        height=520,
        title=dict(
            text="Amazon Product Reviews — Customer View",
            font=dict(
                size=24,
                color=TEXT_COLOR
            ),
            x=0.02,
            xanchor="left"
        ),
        paper_bgcolor="#454545",
        plot_bgcolor="#454545",
        font=dict(color="#F5F5F5"),
        showlegend=False,
        margin=dict(l=10, r=15, t=90, b=10)
    ).show()

4 Product view

4.1 Product Information

Based on the same principle, we set the following KPIs:
- Total products
- Percentage of High Rated Products
- Products Needing Attention
Charts information:
- Top Rated Products
- Lowest Rated Products
- Product Rating vs. Review Volume

Code

# Product-level aggregation
product = (
    data.groupby("product_id")
        .agg(
            product_type=("product_type", "nunique"),
            reviews=("user_id", "count"),
            avg_rating=("rating", "mean")
        ).reset_index()
)
# Total product
total_product = product["product_id"].nunique()
# High rated products
high_rated_products = (
    product["avg_rating"].ge(4).mean() * 100
)
# Low rated products: Low rated but high reviews
low_rated_products = product["avg_rating"].lt(3)
median_reviews = product["reviews"].median()
attention_products = (
    low_rated_products &
    product["reviews"].ge(median_reviews)
).mean() * 100

# Charts
top_rated = (
    product
    .sort_values(
        ["avg_rating", "reviews"],
        ascending=[False, False]
    )
    .head(30)
)

low_rated = (
    product
    .sort_values(
        ["avg_rating", "reviews"],
        ascending=[True, False]
    )
    .head(30)
)


product_scatter = product.copy()

Product Dashboard

Code

from plotly.subplots import make_subplots
import plotly.graph_objects as go

fig_product = make_subplots(
    rows=2,
    cols=3,
    specs=[
        [
            {"type": "indicator"},
            {"type": "indicator"},
            {"type": "indicator"},
        ],
        [
            {"type": "bar"},
            {"type": "scatter"},
            {"type": "bar"},
        ],
    ],
    horizontal_spacing=0.06,
    vertical_spacing=0.15,
    subplot_titles=(
        "Total Product",
        "High Rated Products",
        "Products Needing Attention",
        "Top 30 Highest Rated Products",
        "Product Rating vs. Review Volume",
        "Bottom 30 Lowest Rated Products",
    ),
)
# KPI 1
fig_product = fig_product.add_trace(
    go.Indicator(
        mode="number",
        value=total_product,
        title=dict(
            text="Total Product",
            font=dict(
                size=15,
                color=KPI_COLORS[0]
            )
        ),
        number=dict(
            valueformat=",d",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=1
)
# KPI 2
fig_product = fig_product.add_trace(
    go.Indicator(
        mode="number",
        value=high_rated_products,
        title=dict(
            text="High Rated Products",
            font=dict(
                size=15,
                color=KPI_COLORS[1]
            )
        ),
        number=dict(
            valueformat=".1f",
            suffix="%",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=2
)
# KPI 3
fig_product = fig_product.add_trace(
    go.Indicator(
        mode="number",
        value=attention_products,
        title=dict(
            text="Products Needing Attention",
            font=dict(
                size=15,
                color=KPI_COLORS[2]
            )
        ),
        number=dict(
            valueformat=".1f",
            suffix="%",
            font=dict(
                size=28,
                color=TEXT_COLOR
            )
        )
    ),
    row=1,
    col=3
)

# Chart 1: Top products
fig_product = fig_product.add_trace(
    go.Bar(
        x=top_rated["product_id"],
        y=top_rated["avg_rating"],
        textposition="outside",
        marker=dict(
            color=KPI_COLORS[0]),
        customdata=top_rated[["reviews"]],
        hovertemplate=(
            "Product: %{x}<br>"
            "Average Rating: %{y:.2f}<br>"
            "Reviews: %{customdata[0]:,}"
            "<extra></extra>"
        ),
    ),
    row=2,
    col=1
)
# Chart 2: Low products
fig_product = fig_product.add_trace(
    go.Scatter(
        x=product["reviews"],
        y=product["avg_rating"],
        mode="markers",
        marker=dict(
            size=8,
            opacity=0.65,
        ),
        customdata=product[["product_type"]],
        hovertemplate=(
            "Product: %{customdata[0]}<br>"
            "Reviews: %{x:,}<br>"
            "Average Rating: %{y:.2f}"
            "<extra></extra>"
        ),
    ),
    row=2,
    col=2
)
# Chart 3: Product rating vs Reviews
fig_product = fig_product.add_trace(
    go.Bar(
        x=low_rated["product_id"],
        y=low_rated["avg_rating"],
        textposition="outside",
        marker=dict(
            color=KPI_COLORS[2]),
        customdata=low_rated[["reviews"]],
        hovertemplate=(
            "Product: %{x}<br>"
            "Average Rating: %{y:.2f}<br>"
            "Reviews: %{customdata[0]:,}"
            "<extra></extra>"
        ),
    ),
    row=2,
    col=3
)
# Final layout
fig_product.update_xaxes(
    title_text="Product",
    tickangle=-45,
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=1
)
fig_product.update_yaxes(
    title_text="Average Rating",
    range=[0, 5.2],
    showgrid=False,
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=1
)
fig_product.update_xaxes(
    title_text="Reviews",
    color=MUTED_TEXT,
    row=2,
    col=2
)
fig_product.update_yaxes(
    title_text="Average Rating",
    range=[1, 5],
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=2
)
fig_product.update_xaxes(
    title_text="Product",
    tickangle=-45,
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=3
)
fig_product.update_yaxes(
    title_text="Average Rating",
    range=[0, 2.1],
    color=MUTED_TEXT,
    gridcolor=GRID_COLOR,
    row=2,
    col=3
)

# Box KPIs
KPI_BOXES = [
    (0.001, 0.300),
    (0.360, 0.650),
    (0.700, 0.998)
]

for (x0, x1), color in zip(
        KPI_BOXES,
        KPI_COLORS):

    fig_product = fig_product.add_shape(
        type="rect",
        xref="paper",
        yref="paper",
        x0=x0,
        x1=x1,
        y0=0.58,
        y1=0.98,
        fillcolor=CARD_COLOR,
        line=dict(
            color=color,
            width=2
        ),
        layer="below"
    )
# Background color
fig_product\
    .update_layout(
        width=970,
        height=520,
        title=dict(
            text="Amazon Product Reviews — Product View",
            font=dict(
                size=24,
                color=TEXT_COLOR
            ),
            x=0.02,
            xanchor="left"
        ),
        paper_bgcolor="#454545",
        plot_bgcolor="#454545",
        font=dict(color="#F5F5F5"),
        showlegend=False,
        margin=dict(l=10, r=15, t=90, b=10)
    ).show()

5.1 Trending Veiw

It’s important to highlight the trend of various indicators:
- Number of reviews (engagement)
- Average Rating
- Distribution of Rating
- Rating evolution of some popular product types…
Lineplot would be the main graph for this purpose.
We first perform some data manipulation:

Code

# Monthly rating statistics
# -------------------------
monthly_rating = (
    data.set_index("date")
      .resample("M")
      .agg(
          reviews=("rating", "size"),
          avg_rating=("rating", "mean")
      )
      .reset_index()
)
# Rating proportions
# ------------------
rating_month = (
    data.assign(month=data["date"]
        .dt.to_period("M")
            .dt.to_timestamp()) # 1st day
    .groupby(["month", "rating"])
    .size()
    .reset_index(name="reviews")
)

rating_month["share"] = (
    rating_month
    .groupby("month")["reviews"]
    .transform(lambda x: x / x.sum()) # normalize
)
# Category trends
# ---------------
category_month = (
    data.assign(
        month=data["date"]
        .dt.to_period("M")
        .dt.to_timestamp()
    )
    .groupby(["month", "product_type"])
    .agg(
        reviews=("rating", "size"),
        avg_rating=("rating", "mean")
    )
    .reset_index()
)
# Keep the largest categories
top_types = (
    data["product_type"]
    .value_counts()
    .head(5)
    .index
)
category_month_top = category_month[
    category_month["product_type"].isin(top_types)
]

Code

# Figure
# ------
fig_trend = make_subplots(
    rows=2,
    cols=2,
    subplot_titles=[
        "Review Volume Over Time",
        "Average Rating Over Time",
        "Rating Composition",
        "Category Rating Trends"
    ],
    vertical_spacing=0.12,
    horizontal_spacing=0.05
)
# -------------
# Review volume
fig_trend.add_trace(
    go.Scatter(
        x=monthly_rating["date"],
        y=monthly_rating["reviews"],
        mode="lines",
        fill="tozeroy",
        name='Review evolution',
        hovertemplate=(
            "%{x|%b %Y}<br>"
            "Reviews: %{y:,}<extra></extra>"
        )
    ),
    row=1,
    col=1
)
# Average rating trend
# --------------------
fig_trend.add_trace(
    go.Scatter(
        x=monthly_rating["date"],
        y=monthly_rating["avg_rating"],
        mode="lines+markers",
        name='Avg Rating evolution',
        hovertemplate=(
            "%{x|%b %Y}<br>"
            "Average rating: %{y:.2f}<extra></extra>"
        )
    ),
    row=1,
    col=2
)
# Rating composition
# ------------------
for rating in sorted(rating_month["rating"].unique()):
    temp = rating_month[
        rating_month["rating"] == rating
    ]
    fig_trend.add_trace(
        go.Scatter(
            x=temp["month"],
            y=temp["share"],
            mode="lines",
            stackgroup="one",
            name=f"{rating}★",
            hovertemplate=(
                f"{rating}★<br>"
                "%{x|%b %Y}<br>"
                "Share: %{y:.1%}<extra></extra>"
            )
        ),
        row=2,
        col=1
    )
# Category rating trends
# ----------------------
for product_type in top_types:
    temp = category_month_top[
        category_month_top["product_type"] == product_type
    ]
    fig_trend.add_trace(
        go.Scatter(
            x=temp["month"],
            y=temp["avg_rating"],
            mode="lines",
            name=str(product_type),
            hovertemplate=(
                f"{product_type}<br>"
                "%{x|%b %Y}<br>"
                "Rating: %{y:.2f}<extra></extra>"
            )
        ),
        row=2,
        col=2
    )

fig_trend.update_layout(
    title="Amazon Beauty Products — Rating & Market Trends",
    width=970,
    height=520,
    paper_bgcolor="#454545",
    plot_bgcolor="#454545",
    font=dict(color="#F5F5F5"),
    margin=dict(l=10, r=15, t=90, b=10)
)

fig_trend.update_yaxes(
    tickformat=".0%",
    row=2,
    col=1
)

for i in range(4):
    fig_trend.update_xaxes(
        showgrid=False,
        row=i//2+1,
        col=i%2+1
    )

fig_trend.show()

6 Final Dashboard

6.2 Dash Framework

Dumb all the figures then assemble them back using dash.

import pickle

figures = {
    "overview": fig_overall,
    "product": fig_product,
    "customer": fig_customer,
    "trend": fig_trend
}

with open("dashboard_figures.pkl", "wb") as f:
    pickle.dump(figures, f)

Dash is a great tool for dashboard development and deployment.
We can then read back the 4 figures and assemble them into a nice dashboard: Amason dashboard.

6.2 Dash Framework

6.3 Summary

Business objective is always the main driver of how the dashboard should look like.
Define KPIs that highlights the indicators to the main objective.
Data Wrangling and Manipulation is another important step to start building the dashboard.
Select format and aesthetic of the dashboard.
Python & Plotly are tools for CS students.
Power BI and Tableau are for business and less technical people.
AI Tools such as Claude, Gemini… are also great but you have to know what you are doing.

🥳 Yeahhhh 🥂!!!

Any question? Take a break!

Advanced Data Visualization

1 Intro & Motivation

1.1 Introduction

1.2 Dashboarding process

1.2 Dashboarding process (cont.)

2 Overall view

2.1 Overview dashboard

Data Wrangling

Overall: KPIs

Overall: KPIs (cont.)

Graphs

Assemble everything

Assemble everything (cont.)

Final result

3 Customer veiw

3.1 Customer view

3.1 Customer view

Customer KPIs

Customer KPIs

Customer KPIs (cont.)

Customer charts

Customer charts (cont.)

Final Touch

4 Product view

4.1 Product Information

Product Dashboard

5 Trending veiw

5.1 Trending Veiw

Trending Dashboard

6 Final Dashboard

6.1 Quarto Tabs

6.2 Dash Framework

6.2 Dash Framework

6.3 Summary
